User Manual for Compactor garbage truck

Thank you for using CLW brand special purpose vehicles.We absorbed advantages from other vehicle models inland and overseas to design CLW brand series special purpose vehicles. CLW Vehicles have reasonable structure, safe function, easy to operate, beautiful appearance, etc.

Our compression refuse collector integrated multi-functions, normally be used to town, street, enterprise and residential, etc.

This instruction book specified about compression refuse collector ‘s technology parameter , structure, work principle, operation and maintenance, etc.

Please find the chassis’ technology function index, operation and maintenance in the accordingly chassis instruction.

In order to make sure the vehicle work correctly and its service life, please maintain the vehicle comply with the instruction strictly. And please read the instruction carefully before operating.

In order to meet different customers’ desires, we are keeping improving the structure of the compression refuse collector,please notice that the actual structure is a little different with this instruction book, please considerate.

CLW brand compression refuse collectoris one kind of modified vehicle using chassisof Dongfeng (DAF) or other famous chassis （Ｆoton , JAW ,SINOTRUCK ）. Its main structure is hydraulic m echanism which is consisting of box body, charger mechanism, compression mechanism, discharging mechanism, oil pump, oil cylinder, control valve. Our products have many different models and specifications for customer to choose. Its outline， please see drawing one.

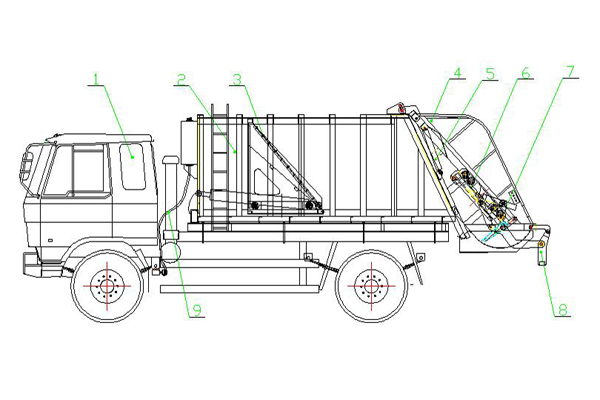

 Drawing one

1、 chassis 2、 box body 3、  discharging mechanism 4、  hopper 5、 lift mechanism 6、  compression mechanism 7、  flex mechanism

2、 Main technology function index

3、 Work principle

This special purpose vehicle uses hydraulic driven during whole process of loading rubbish, compression rubbish and discharging rubbish. PTO (power take off) and transmission shaft transfer engine’s power to oil pump who revolving can produce high pressure. Operating according switches make oil pump work which is the leader of all working system .

4、  Main structure

Box body of refuse collector

Box body which sealed structure made by pure metal,including steel plate and channel steel , used to load rubbish. Under the box body, there is a under-frame which was fixed on the chassis by U-bolt. There is a discharge mechanism and an oil cylinder in front of the box body and there is a loading mechanism behind of it.
