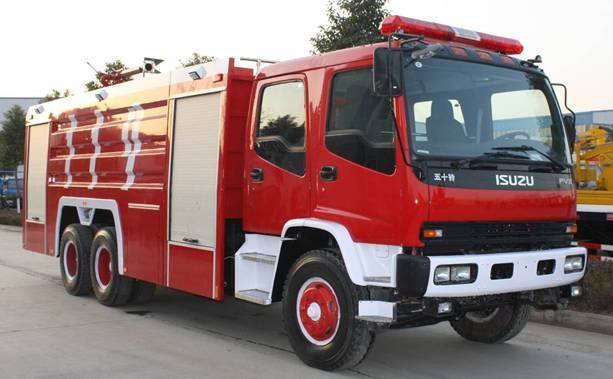

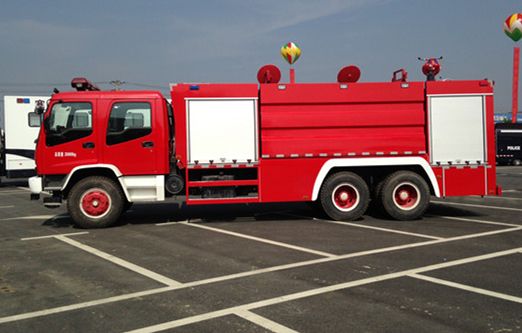

ISUZU 6x4 12t foam fire truck from Chengli special automobile company
Time:2020-05-21
Views:693
Description of the special functions of the 15-ton foam fire truck for Isuzu:
Water tank volume: 12000L; foam tank volume: 3000L
Fire pump model: CB60 / 10 normal pressure pump;
Optional CB20.10 / 30.60 type medium and low pressure pump
Medium pressure: 30L/S@2.0MPa
Low pressure: 60L/S@1.0MPa
Maximum water absorption depth: 7m
Diversion method: circulating diversion
Maximum water absorption time: ≤35s
Pump drive mode: sandwich power take-off
Fire water cannon model: PP50 (foam dual-purpose fire water cannon)
Flow rate: 48L / S
Pressure: 1.0MPa
Effective range: water ≥65m
Foam range: 60m
.jpg)
● Fire trucks are also known as fire trucks and fire trucks. It is modified from the second-class truck chassis. The special part is composed of liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc. It is widely used in public security fire brigade, petrochemical industry, factories and mines , Forest, port, wharf and other departments, can quickly approach the fire site to start fire fighting and fight all kinds of fires, is the ideal fire fighting equipment.
Chengli specializes in the production of Dongfeng Xiaobawang fire truck, Dongfeng 140 fire truck, Dongfeng 140/47 fire truck, Dongfeng 145 fire truck, Dongfeng 153 fire truck, Dongfeng rear double bridge fire truck, Steyr fire truck, Isuzu fire truck, Jiefang Fire truck etc.
● The streamlined design of the whole fire truck is novel in appearance, flexible and flexible, economical and practical. The internal equipment frame partition materials are made of high-strength aluminum alloy profiles, which are beautiful and elegant. All kinds of equipment are placed reasonably and fixed with special special fixtures. The fire truck adopts a double-row integral structure, with a wide field of view, a large number of occupants, and can take 6-8 people; the fire truck can extinguish fire while traveling, with a long range and strong fighting ability. Optional normal pressure fire pump, medium and low pressure fire pump, high and low pressure fire pump. Users who have special requirements for fire trucks can design and refit according to the order, and can add accessories such as preheating and insulation devices, direction assistance, air conditioning and so on.
.jpg)
Water tank volume: 12000L; foam tank volume: 3000L
Fire pump model: CB60 / 10 normal pressure pump;
Optional CB20.10 / 30.60 type medium and low pressure pump
Medium pressure: 30L/S@2.0MPa
Low pressure: 60L/S@1.0MPa
Maximum water absorption depth: 7m
Diversion method: circulating diversion
Maximum water absorption time: ≤35s
Pump drive mode: sandwich power take-off
Fire water cannon model: PP50 (foam dual-purpose fire water cannon)
Flow rate: 48L / S
Pressure: 1.0MPa
Effective range: water ≥65m
Foam range: 60m
● Fire trucks are also known as fire trucks and fire trucks. It is modified from the second-class truck chassis. The special part is composed of liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc. It is widely used in public security fire brigade, petrochemical industry, factories and mines , Forest, port, wharf and other departments, can quickly approach the fire site to start fire fighting and fight all kinds of fires, is the ideal fire fighting equipment.
Chengli specializes in the production of Dongfeng Xiaobawang fire truck, Dongfeng 140 fire truck, Dongfeng 140/47 fire truck, Dongfeng 145 fire truck, Dongfeng 153 fire truck, Dongfeng rear double bridge fire truck, Steyr fire truck, Isuzu fire truck, Jiefang Fire truck etc.
● The streamlined design of the whole fire truck is novel in appearance, flexible and flexible, economical and practical. The internal equipment frame partition materials are made of high-strength aluminum alloy profiles, which are beautiful and elegant. All kinds of equipment are placed reasonably and fixed with special special fixtures. The fire truck adopts a double-row integral structure, with a wide field of view, a large number of occupants, and can take 6-8 people; the fire truck can extinguish fire while traveling, with a long range and strong fighting ability. Optional normal pressure fire pump, medium and low pressure fire pump, high and low pressure fire pump. Users who have special requirements for fire trucks can design and refit according to the order, and can add accessories such as preheating and insulation devices, direction assistance, air conditioning and so on.
