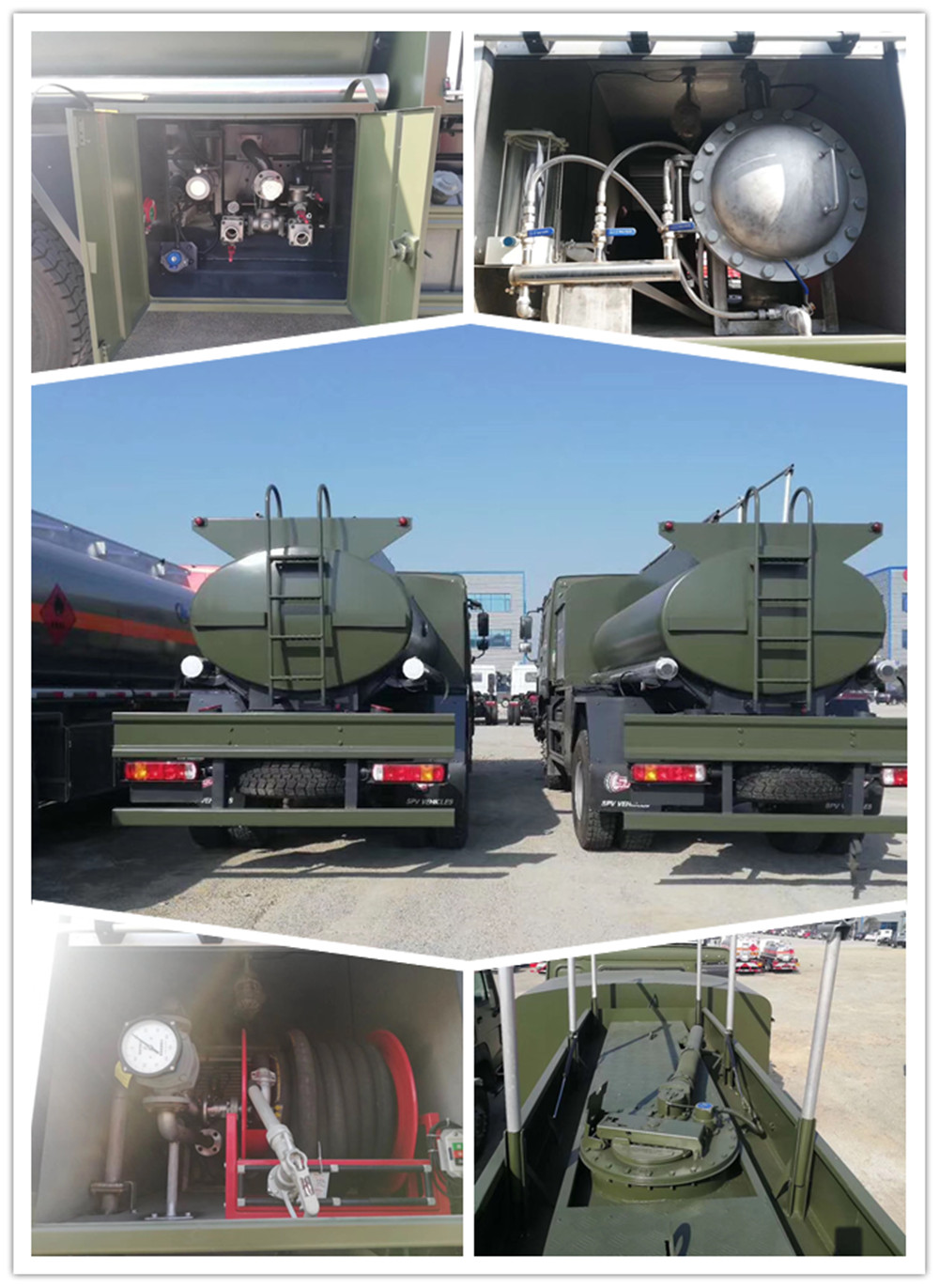

HOWO 8000L aircraft fueler from Chengli factory

HOWO Aircraft fueler/Plane,jet refueller:

Dimensions: 8700 × 2500 × 3300MM, Total mass: 18000kg, Emission standard: Euro II-V, Driving form: 4X2, Curb weight: 7805kg, Wheelbase: 4500, 4700MM, Tank volume: 8-15 cubic meters, Tire Specification: 10.00R20 steel tire / 295 / 80R22.5 vacuum tire.

Performance parameters of special vehicles:

1. Tank body: The tank body is made of aluminum-magnesium alloy 5083/5812. It has light weight, large volume, corrosion resistance and pollution-free, and guarantees oil quality.

2. Refueling pump: Russian-style aluminum alloy centrifugal pump, reel refueling flow 80 or 300L / min, pipeline pumping flow 700L / min, working pressure is 0.25MPa.

3. Flowmeter: 0.2 level accuracy, 50 diameter waist flowmeter.

4. Filter separator: rated flow rate is 400L / min, rated working pressure is 1.0MPa, and maximum allowable pressure difference is 0.15MPa, which meets the requirements of the third edition of API 1581.

5. Gravity refueling reel: automatic reset reel, refueling hose diameter 25 or 38MM, 15 meters long.

6. Liquid level gauge: stainless steel float in the tank, 10-inch aluminum alloy dial on the left side of the tank, you can clearly observe the current volume of liquid in the tank.

7, operating system: independent control room centralized control, instrument instructions include pump into the vacuum gauge, pump pressure gauge, oil pump tachometer, filter pressure gauge and so on. On-off valve operation includes main power switch, lighting switch, emergency stop switch, oil pump adjusting knob, refueling valve, circulating filter valve, sampling valve, subsea valve control combination switch, etc.

8. Performance description:

(1) Reel refueling-After filtering and metering, the fuel in the vehicle‘s oil tank is injected into the aircraft fuel tank or other oil receiving equipment through the gravity refueling gun of the reel hose in the control room.

(2) Pump oil filtration-After filtering the fuel in the vehicle‘s oil tank or external pipeline, it will be returned to the vehicle‘s oil tank or other oil-receiving equipment through the pump oil connector after filtering to realize the ball filtering function.

(3) Filling oil in the oil tank-Use the joint valve to connect the pipeline to the bottom of the oil tank, or the oil pumping function can be realized by this oil pump.

Optional pressure refueling system, including PCV tube pressure control valve, Venturi tube, remote magnetic control switch (Deamdman commonly known as deman) and other related accessories.

Product features of aircraft fuel truck:

1. The tank body and pipes of the aircraft refueling truck are all made of aluminum alloy. The fuel tank is equipped with a high-performance filter separator that can filter impurities and moisture to ensure the cleanliness of the oil.

2. Ensure safety during refueling. Equipped with engine emergency stop device, anti-static device, explosion-proof device, lighting device, fire extinguisher, etc., high refueling pressure stability.

3. Equipped with perfect safety interlock device to prevent misoperation and ensure aircraft and oil depot facilities.

4, equipped with high-precision, large flow meter, real-time monitoring during refueling, refueling speed is fast.

5. Aircraft refueling trucks meet environmental protection requirements, and are designed to be safe, beautiful, humane, versatile, and widely applicable.

The vehicle is composed of a chassis system, an oil tank system, a refueling control system, an electric hydraulic control system, and an interlock protection system. It has the functions of pumping oil, regulating pressure, purifying, and metering. It can be completed independently, quickly, and safely as a helicopter. Special vehicle for refueling.

The aircraft refueling vehicle produced by Suizhou Lishen Special Purpose Vehicle Co., Ltd. uses a well-known domestic chassis modification. The tank body is made of aluminum alloy or stainless steel. It is equipped with a pumping system, a refueling system and an independent tanker. The structure is reasonable and easy to use. The fuel in the tank can be filtered and metered, and then injected into the aircraft fuel tank or other oil equipment through gravity reel hoses. The rear of the tanker is equipped with a special aviation fuel connector, which is convenient for loading oil and is convenient for personnel to get on and off. Ladder of the tank.

V. Advantages of aircraft refueling vehicle with aluminum alloy tank:

1. Light weight, large volume and high economic benefits.

2. Corrosion resistance, no pollution to oil products, high cleanliness.

3. Long service life and high recycling value.

4. Good conductivity and elongation, high safety.
