HOWO 14m Aerial Platform for export shipping
Time:2022-08-16
Views:148

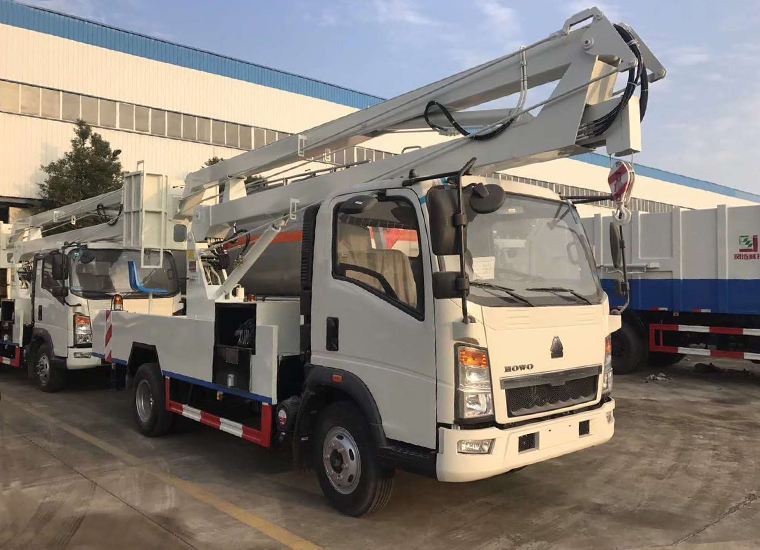

HOWO 14m high-altitude working vehicle adopts a folding curved arm structure. The working arm is a three section folding type. The work platform and the turntable are in duplex position, operated up and down, controlled manually by hydraulic pressure, and can rotate 360 degrees. It has four hydraulic legs, with a 1-ton hook. The maximum load of the work platform is 200 kg. The steel tool box, enclosure and pattern anti-skid walking platform.
.jpg)
The vehicle is equipped with two-way hydraulic lock, two-way lock balance valve, fluid flow valve, hydraulic cylinder and other main components, which are domestic well-known brands, with stable reversing and flexible and convenient operation; The outrigger and the working arm are interlocked, safe and reliable, and prevent misoperation; The H-type outrigger has large span and good stability. The outrigger can expand and retract independently and can be linked. The rear outrigger is equipped with a outrigger flash lamp, which is used to display the outrigger profile and send out light alarm signals during operation.
.png)
.png)
