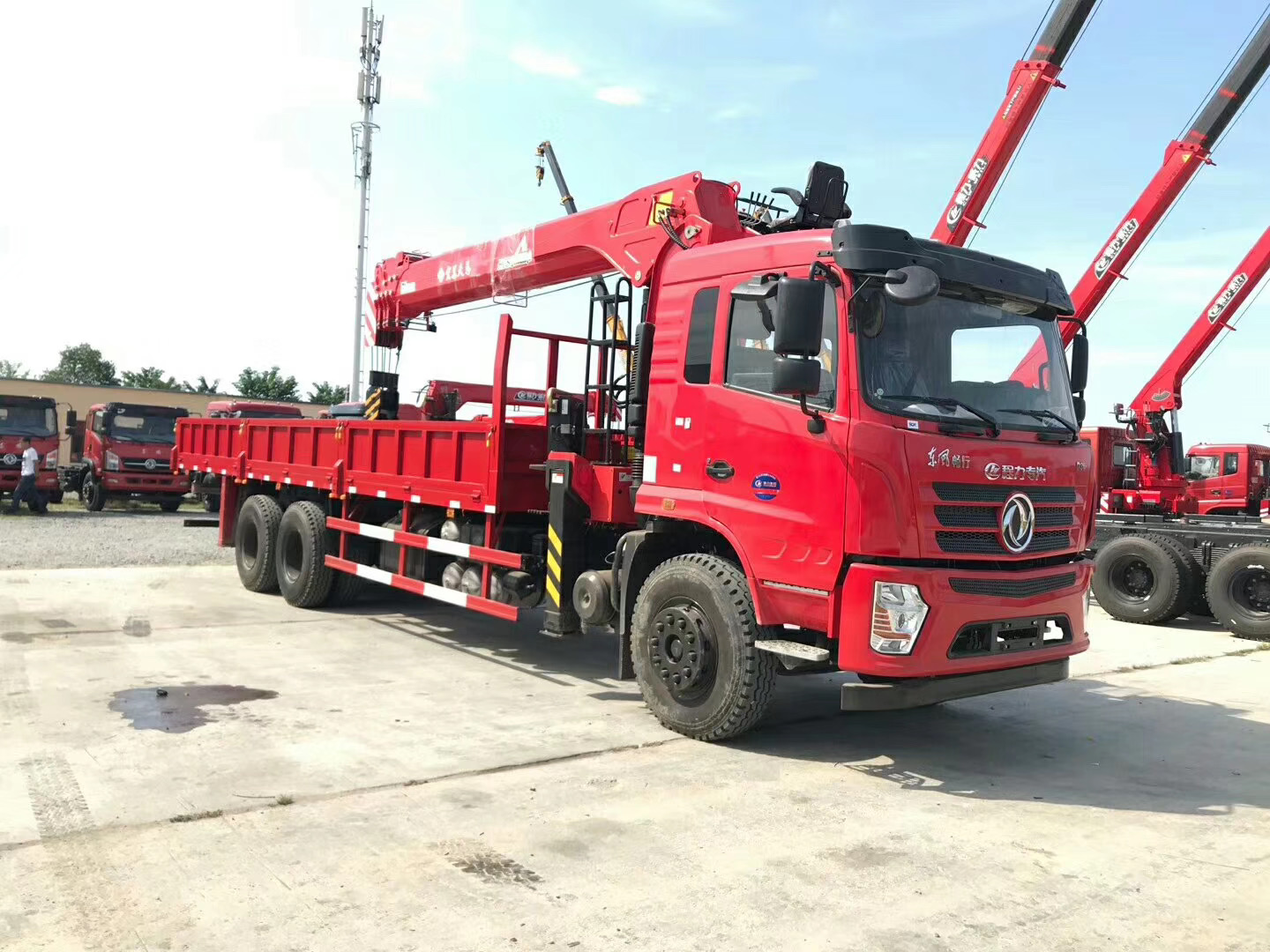

Chengli 8X4 12-14tons truck with crane for sale

Dongfeng Tianlong rear 6x4 chassis, engine can choose 245 horsepower engine or Dongfeng Cummins 270 horsepower engine, national three, four, five emissions, wheelbase 5700 + 1358mm, Shaanxi gear 9 gear 9JS119TA transmission, 7 tons front axle, 10 tons single stage Deceleration double rear axle, main reduction ratio 4.44, frame longitudinal beam cross-section size 300 × 90 × (8 + 6), integral power steering, 11.00 steel tire. Manual adjustment arm, manual glass lifter, remote control front door lock, ABS, airbag shock driver seat, air conditioning, cruise system, driving recorder, front lower guard, with power take-off.

The truck is equipped with XCMG‘s 12-ton four-section straight-arm crane, 360-degree full hydraulic, full swing, with high-altitude seats. Single pump: working radius 12.5, lifting height 14.5 meters. Double pump with long arm: maximum lifting height 14.5 meters, working radius 12.5 meters.
Outrigger form: optional dual-chamber hydraulic rear outrigger with a span of 4.8 meters. The greater the span of the outriggers, the higher the safety performance of the vehicle.
Operation mode: The car is equipped with high-altitude operation as standard, and it can be equipped with a central four-position operation at an additional price.
Frame girder: Straight through auxiliary beams can be optionally installed, reinforced girder to enhance the carrying capacity of the whole vehicle.
