Guardrail & solar panel cleaning vehicles

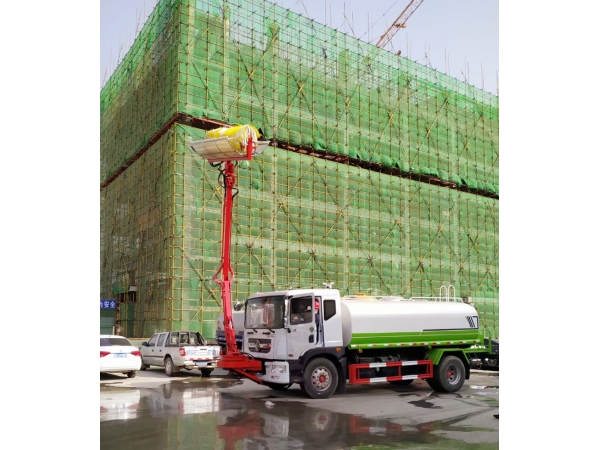

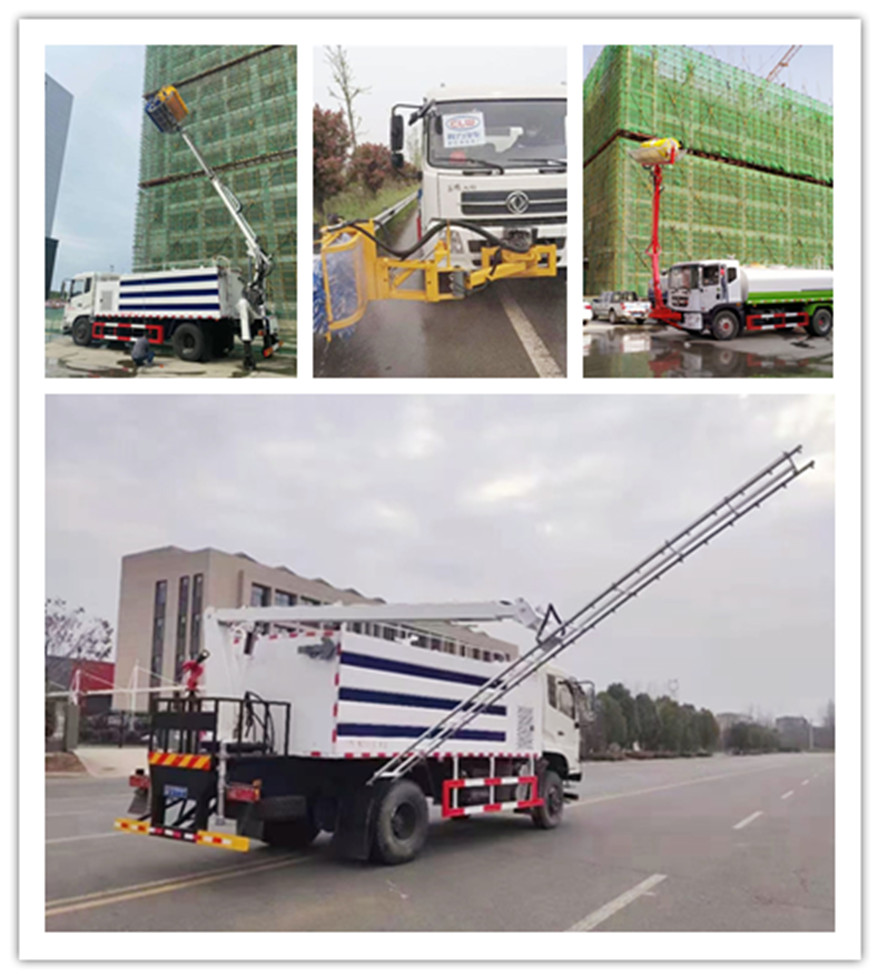

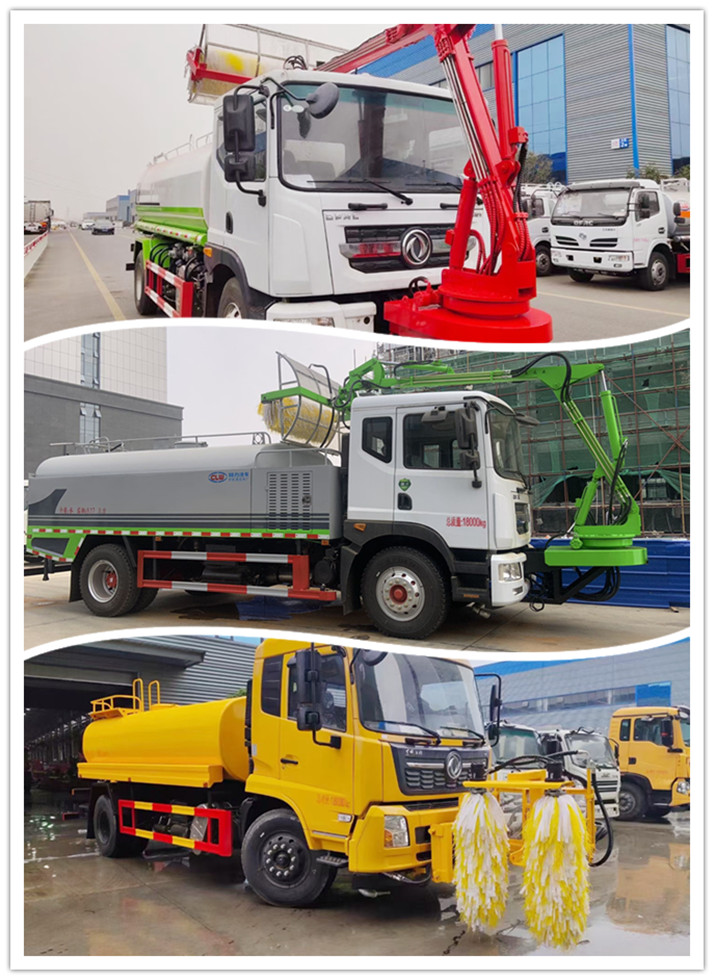

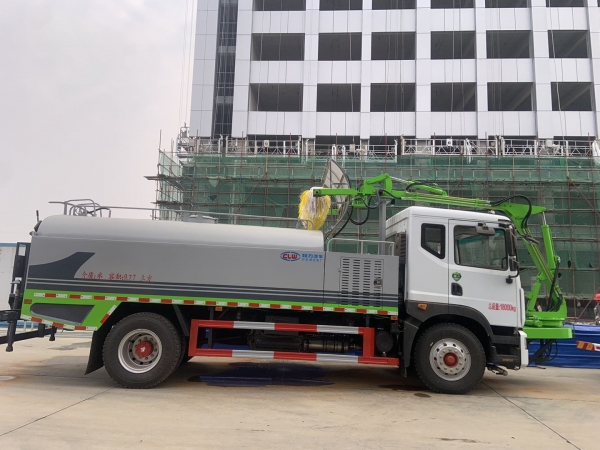

12000L Bill board and guard rail cleaning truck

Water tank: 9,000L to 12,000L
Max. working height: 7.5m

Chassis: Dongfeg 4x2
Engine: 135kW

Emission standard: EURO3,EURO4, EURO5,EURO6
Steering wheel: LHD/RHD

Condition: Brand new
Origin: Suizhou,Hubei,China

    1. Power system: chassis power take-off

    2. Hydraulic system

    System pressure: 16Mpa

    System flow: 40L/min

    Including hydraulic oil tank, filter, hydraulic pump, hydraulic motor, distribution valve, oil cylinder, oil pipe, etc.

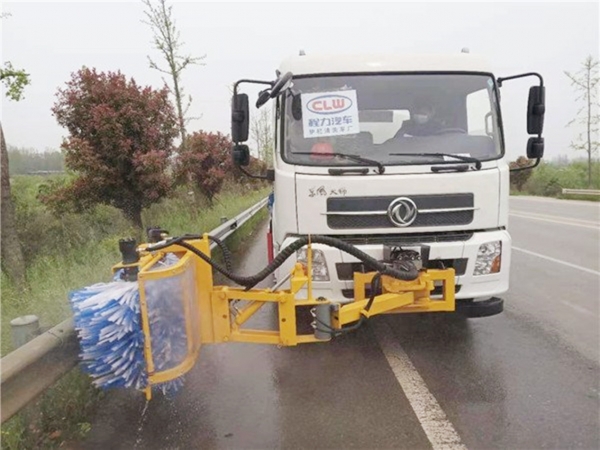

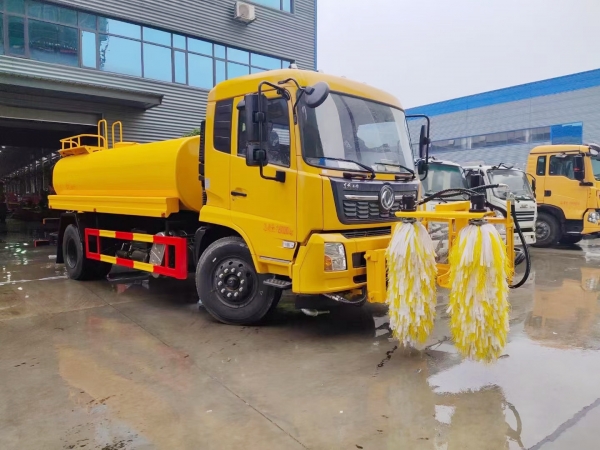

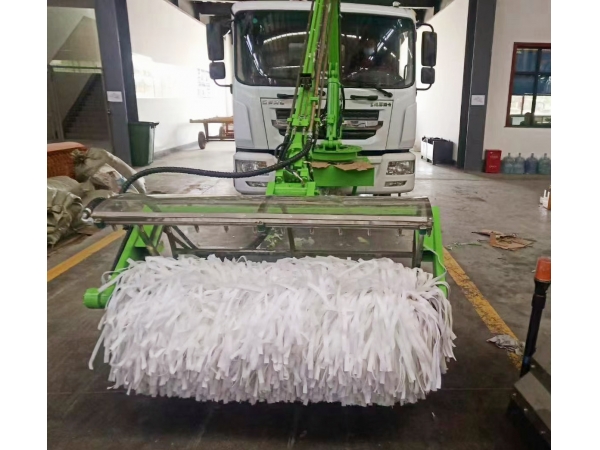

    3. cleaning brush

    Number of cleaning brushes: 2 cylindrical brushes

    Cleaning brush diameter: 650mm

    Cleaning brush length: 600mm-800mm

    Brush speed: 300-600 rpm

    Cleaning brush material: super soft polyethylene several kinds of multi-ribbed silk + sticky cloth strip

    Cleaning speed: 2-20 km/h (depending on the degree of dirt, the working speed can be controlled at will)

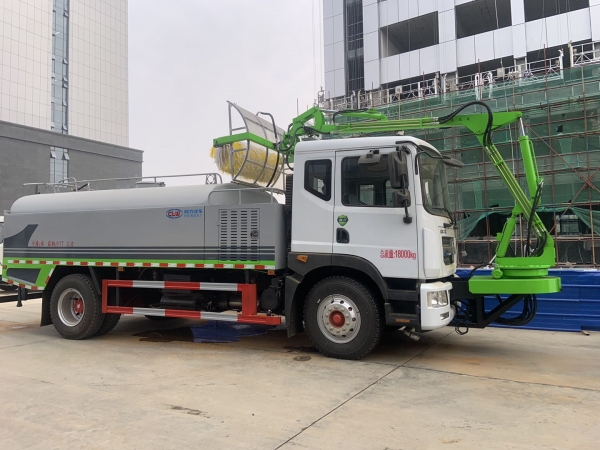

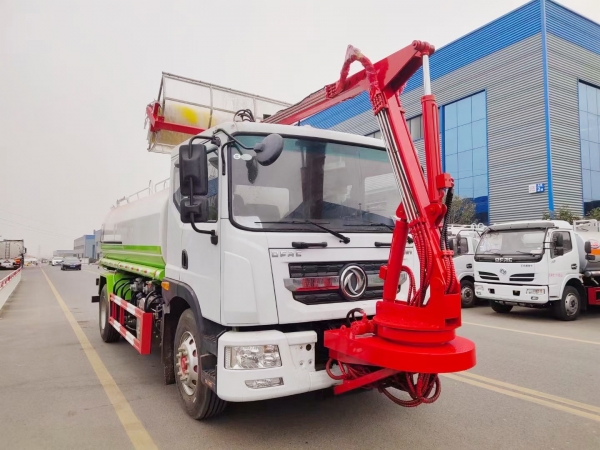

    4. wash arm

    Washing arm rotation range: 180 degrees

    Washing arm length: 2500mm

    Up and down range of cleaning arm: 1.5m

    Cleaning arm folding arm range: 120゜

    Brush body inclination adjustment ≥100°

    5. Water spray system

    Pump flow: 0 to 42.3L/M.

    6. Control system

    Electric and hydraulic remote (manual) control, the operator can easily clean through the (remote control) in the cab. Operator: 1 person
