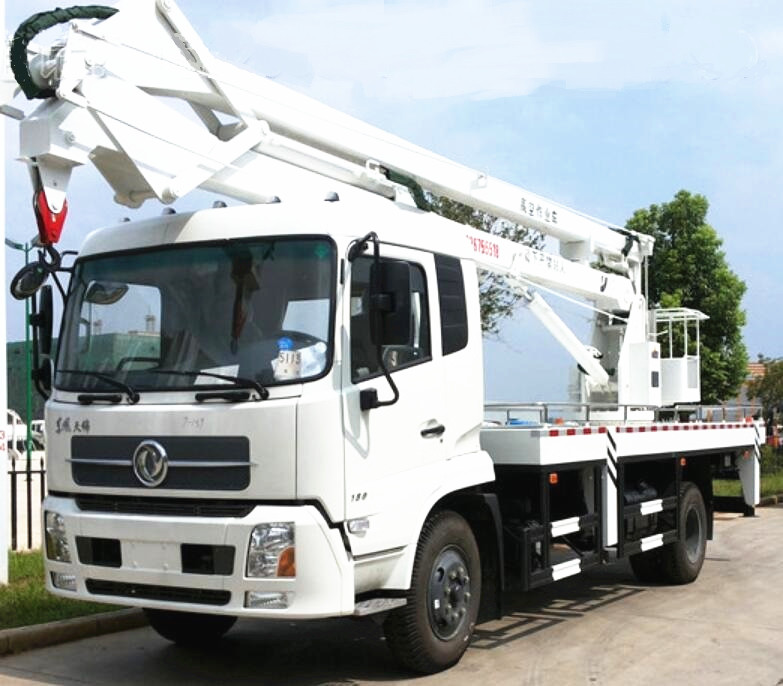

The characteristics of Chengli aerial overhead working truck
Time:2019-07-24
Views:1363
Chengli Group aerial work vehicles can be customized according to customer requirements 10 meters, 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, folding working arms, 4 hydraulic H-shaped legs, upper and lower double-station operation The working bucket is rated at a load capacity of 200 kg and is equipped with a 1 ton hook and a cargo box platform.
The hydraulic arm lifting special device for the working arm, the reversing valve and the hydraulic cylinder are all domestic famous brands, the steering is stable, the operation is flexible and convenient; the rotary table and the working bucket are double-station operation; the legs and the working arm are interlocked, safe and reliable, and prevent mistakes. Operation; H-type legs, large span, good stability, the legs can be independently telescopic, and can be linked, equipped with a leg flashing light, used for the outline of the legs during operation, and emits a light alarm signal.
Features:
1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in equilibrium during work.
2. The maximum extension angle of the arm is 65° to adjust to the optimal working position. (The measurement method of the extension angle of the arm is different, some manufacturers mark it as 90°)
3, up and down two sets of operating systems, can complete a variety of work on the work bucket and turntable.
4. The legs are individually adjustable, and each leg can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.
5, 18 meters above the height of the aerial work vehicle can be installed free of charge electronic control operation, lifting and turning action is controlled by the throttle valve, that is, in the upper and lower sets of operating systems, the speed of lifting and swinging can be achieved from zero to the maximum In order to make the whole vehicle work smoothly during the operation, the operator is more secure and comfortable.
6, night work lights, the operating platform can be installed according to the customer‘s operating environment to operate the lighting, making night operations safer.
7, the legs (front and rear H-type) the force surface is larger, the stability is higher; can prevent (Note: if the legs use the front V, rear H-type models, after a long time of use, because the front of the car is upside down Deformation or breakage of the vehicle beam) deformation or breakage of the vehicle beam.
8. Four vertical leg cylinders, upper arm, lower arm and arm cylinder are equipped with two-way hydraulic locks. The function is to lock the cylinders after the cylinder reaches the required position to prevent accidents. The working arm hydraulic lock is a two-way balancing valve (lock), which makes the working arm run more smoothly.
Optional features:
1. Electronic control operation: The operating system of the turntable and the work bucket is changed to electronic control, and the control system is composed of an electric control switch and a throttle valve.
2. Emergency stop/extinguish (engine start) switch: The vehicle has an emergency stop/extinguish (engine start) switch button on the turntable and the workbench respectively. If there is a critical situation during the operation, pull it. This switch can extinguish the engine to avoid accidents and increase the safety of the whole vehicle. At the same time, the switch can be turned on to open the engine.
3. Emergency pump: The vehicle is equipped with an emergency pump. When the engine fails and cannot be started, the electric emergency pump switch can be pulled and the arm frame and the legs can be fully recovered by the electric energy of the chassis battery.
4. Limit travel switch: It is suitable for high-altitude vehicles over 20 meters. When installed on the arm, when the arm moves to the limit position, the safety control system reliably limits the movement of the arm through the limit travel switch to ensure that the whole vehicle is always in safe operation. Within the scope.
5. Telescopic boom: The boom can extend 0.8-1m outward.
6. Hydraulic heat sink: The vehicle continuously works for the heat dissipation of the hydraulic system.
7, vehicle level: display the vehicle level.
8, work bucket insulation: strengthen the protection of live working.
The hydraulic arm lifting special device for the working arm, the reversing valve and the hydraulic cylinder are all domestic famous brands, the steering is stable, the operation is flexible and convenient; the rotary table and the working bucket are double-station operation; the legs and the working arm are interlocked, safe and reliable, and prevent mistakes. Operation; H-type legs, large span, good stability, the legs can be independently telescopic, and can be linked, equipped with a leg flashing light, used for the outline of the legs during operation, and emits a light alarm signal.
Features:
1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in equilibrium during work.
2. The maximum extension angle of the arm is 65° to adjust to the optimal working position. (The measurement method of the extension angle of the arm is different, some manufacturers mark it as 90°)
3, up and down two sets of operating systems, can complete a variety of work on the work bucket and turntable.
4. The legs are individually adjustable, and each leg can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.
5, 18 meters above the height of the aerial work vehicle can be installed free of charge electronic control operation, lifting and turning action is controlled by the throttle valve, that is, in the upper and lower sets of operating systems, the speed of lifting and swinging can be achieved from zero to the maximum In order to make the whole vehicle work smoothly during the operation, the operator is more secure and comfortable.
6, night work lights, the operating platform can be installed according to the customer‘s operating environment to operate the lighting, making night operations safer.
7, the legs (front and rear H-type) the force surface is larger, the stability is higher; can prevent (Note: if the legs use the front V, rear H-type models, after a long time of use, because the front of the car is upside down Deformation or breakage of the vehicle beam) deformation or breakage of the vehicle beam.
8. Four vertical leg cylinders, upper arm, lower arm and arm cylinder are equipped with two-way hydraulic locks. The function is to lock the cylinders after the cylinder reaches the required position to prevent accidents. The working arm hydraulic lock is a two-way balancing valve (lock), which makes the working arm run more smoothly.
Optional features:
1. Electronic control operation: The operating system of the turntable and the work bucket is changed to electronic control, and the control system is composed of an electric control switch and a throttle valve.
2. Emergency stop/extinguish (engine start) switch: The vehicle has an emergency stop/extinguish (engine start) switch button on the turntable and the workbench respectively. If there is a critical situation during the operation, pull it. This switch can extinguish the engine to avoid accidents and increase the safety of the whole vehicle. At the same time, the switch can be turned on to open the engine.
3. Emergency pump: The vehicle is equipped with an emergency pump. When the engine fails and cannot be started, the electric emergency pump switch can be pulled and the arm frame and the legs can be fully recovered by the electric energy of the chassis battery.
4. Limit travel switch: It is suitable for high-altitude vehicles over 20 meters. When installed on the arm, when the arm moves to the limit position, the safety control system reliably limits the movement of the arm through the limit travel switch to ensure that the whole vehicle is always in safe operation. Within the scope.
5. Telescopic boom: The boom can extend 0.8-1m outward.
6. Hydraulic heat sink: The vehicle continuously works for the heat dissipation of the hydraulic system.
7, vehicle level: display the vehicle level.
8, work bucket insulation: strengthen the protection of live working.
