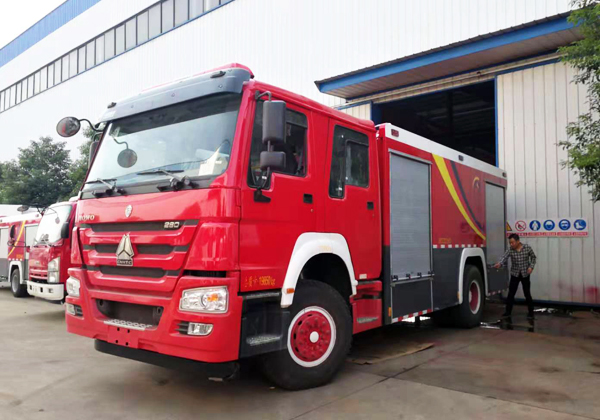

SINOTRUK HOWO 8 tons water tank fire fighting truck detailed configuration

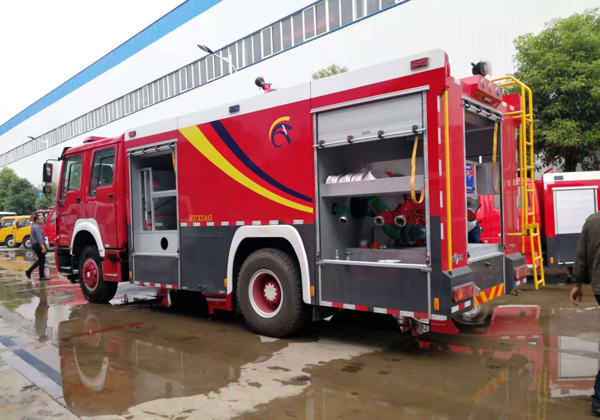

The detailed configuration of the HOW 8 ton water tank fire truck is modified by the Haowo ZZ5207M4617D5 truck type II chassis. The whole vehicle consists of two parts: the fireman‘s crew room and the body. The front part of the body is the equipment box, the middle part is the water tank, and the rear part is the pump room. The liquid carrier tank is made of high quality carbon steel or stainless steel with a water carrying capacity of 8000 kg. The CB10/60 type vehicle fire pump is used, and the PS50 fire cannon is installed on the roof.

As the main fire fighting vehicle, the car has the characteristics of high power, high speed and large liquid carrying capacity. It adopts extended cab, comfortable seat, concentrated operation and easy maintenance. It can be widely used in public security fire brigade and petrochemical industry in large and medium-sized cities. It is an ideal large-scale fire fighting equipment for factories, mines, ports, docks and other places to save large oil fires and general material fires.

The fire performance of the whole vehicle meets the requirements of GB7956; the chassis has passed the national compulsory product certification; the engine emissions meet the requirements of the fifth stage limit of GB17691-2005 national V and GB3847-2005; the fire pumps and fire cannons all passed the national fire equipment supervision Inspection center inspection; fire interface meets GB12514-2006 standard; the vehicle passes 3C certification, which complies with the relevant regulations on the license plate of motor vehicles.

The total volume of the tank body: 7.51 cubic meters, the size of the tank: 3600×1400×1560mm, the integral side rear protection structure, the height of the rear protection from the ground: 525mm. Material: The overall phosphating treatment of carbon steel, the design thickness is 4: 4:3 (base plate: side plate: anti-sway plate). Tank fixing: steel joint with the chassis frame.
The pump adopts CB10/60 type vehicle fire pump, PS50 type vehicle fire gun, rotation angle: 360° horizontal rotation, elevation angle: ≥+70°, depression angle: ≤-15°, flow rate and range: 48-64L/S, Water 360 m.
