Operation steps and precautions of cleaning and suction joint dredging vehicles

Operation steps and precautions of cleaning and suction joint dredging vehicles

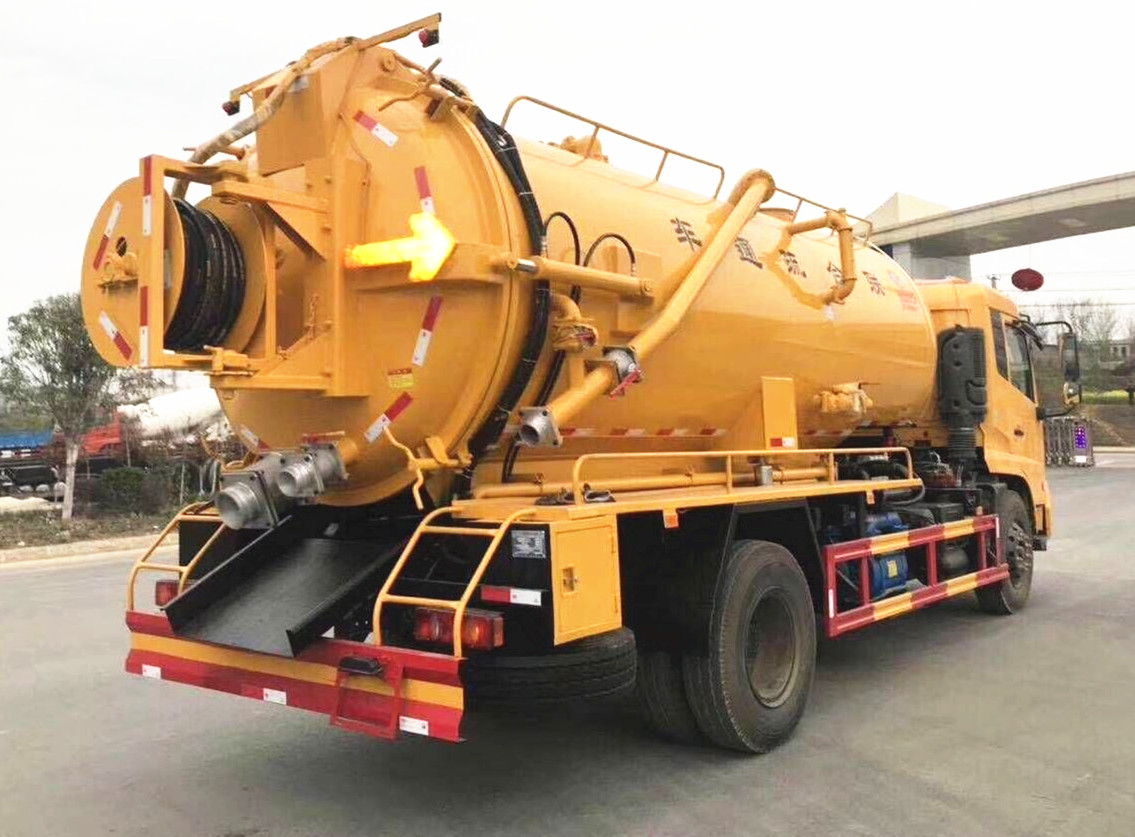

The cleaning and suction truck is also called the joint dredging truck. A vehicle has both the functions of a sewage suction vehicle and a high-pressure cleaning vehicle (a sewer high-pressure dredging vehicle). The sprinkler function can also be installed according to the needs, one car can be used for multiple purposes, and the functions of a variety of models can be obtained with as little investment as possible. In recent years, it has been well received by the market.

There are different sizes of sewage suction trucks. There are sub-storage and sub-tank types. The clean water tank can be hung on the side, can be lifted together or fixed. The volume of 5-6 cubic meters, 10-12.5 cubic meters, 15 cubic meters, 22 cubic meters, 33 cubic meters and other various models can be selected. The volume of the clean water tank and the recovery tank can be allocated according to user requirements and customized, which is very flexible.

The following cleaning and suction truck manufacturers will introduce the operation steps and use precautions for cleaning the sewage suction truck:

The first step is to check whether there is water in the water tank of the water circulation pump and whether the water level reaches 2/3, then tighten the rear cover locking bolt, close the sewage ball valve, open the sewage ball valve, close the water and sewage intercommunication ball valve, and put the sewage suction pipe Connect the dirt suction ball valve.

Then I came to the cab and set on fire, set the barometer to 7 to 8 pressure, step on the clutch, press the vacuum pump switch, and slowly loosen the clutch.

Then get off the car and go to the vacuum pump water tank position, turn the operation lever of the suction and discharge four-way valve until the air inlet and outlet are in the state of outlet air, and the suction function is turned on (at the same time, check whether the pointer of the vacuum pressure gauge moves down).

Finally, pay attention to the fecal pipe of the sewage tank and do not exceed the red warning line to prevent dirt from entering the vacuum pump and causing damage to the pump body. When it reaches the red warning line of the visual fecal pipe, turn the operating lever of the four-way valve for suction and discharge to the middle position to vacuum The pressure is released (simply return to the original position as above).

Finally, step on the clutch, turn off the vacuum pump switch, and the dirt suction function is completed. (In addition, the vacuum pump switch must be turned on when the tank is lifted and the rear cover is opened. It is strictly forbidden to lift the heavy load and open the rear cover without opening the rear cover bolts).

The sewage suction truck has more functions and complex structure. There are not only hydraulic systems, vacuum systems, but also high-pressure systems. Therefore, please pay attention to the operation, do not operate rashly when you are not familiar with it, observe more, consult more, and avoid human damage causing huge losses.
