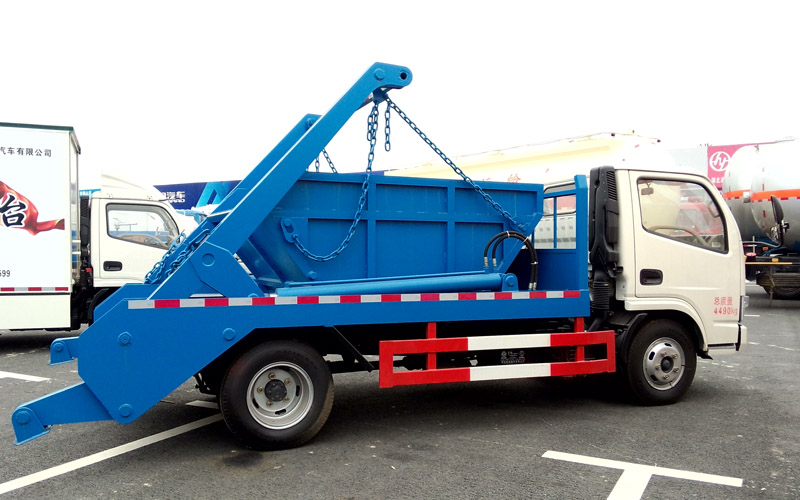

Basic knowledge of swing arm garbage truck

The swing arm type garbage truck is a garbage bucket in a densely populated place, and a plurality of garbage buckets is equipped with a swing arm type garbage truck to save resources. The garbage bucket is divided into two types: the ground type and the pit type. It can be installed with a cover to prevent the garbage from being scattered on the ground and the garbage being flying in the process of transportation.

The basic expertise of swing arm garbage trucks is as follows:

1. The entire operating system of the swing arm garbage truck is composed of a power take-off, an oil pump, a manual multi-way reversing valve, a one-way hydraulic lock, a balance valve, a fuel pipe, a fuel tank, etc., and the whole vehicle power is provided by a car gearbox and a power take-off. The manual multi-way reversing valve operates the leg cylinder and the swing arm cylinder for telescopic movement. The system pressure can be set by a safety relief valve that will overflow from the safety relief valve when the system exceeds the set pressure.

2. The swing arm mechanism of the swing arm garbage truck is composed of a steel plate and a box-shaped structural member. Its main function is to drive the swing arm to rotate around the shaft by the multi-way valve operating cylinder, and its rotation angle is 145°, thereby lifting the garbage hopper and tilting the garbage hopper.

3, swing arm garbage truck garbage bucket is a kind of car used to transport garbage. The swing arm garbage truck is provided with two telescopic oil cylinders for opening and closing the top cover on both sides of the upper top cover of the vehicle box, and the lifting rod of the lifting garbage bin is linked with the upper top cover.

4. The displacement of the oil pump of the operating system of the swing arm garbage truck can be controlled by the manual throttle under the vehicle. The manual reversing valve handle controls the stroke of the valve stem to control the movement speed of the piston rod of the cylinder. The system pressure can be set by the safety relief valve, and the system exceeds The set pressure will overflow from the safety relief valve.

5, swing arm garbage truck swing arm once work cycle time 60S, garbage bin and the body separate, complete a car and multi-cycle cycle, greatly reducing the cost of municipal sanitation.

6. Swing arm type garbage truck hopper: The hopper is a metal welded part, which has two forms of opening and sealing. When the bulk cargo is loaded into the hopper, the chain is hung and the hopper can be lifted by operating the swing arm. When the material is unloaded, the swing arm is used to lift the hopper. After landing, the hoisting chain at one end can be used to discharge the hopper. The maximum tilt angle of the hopper is up to 86°.

7, operating system: Through the system to achieve the conversion of various functions. Before operating the multi-way reversing valve, the power take-off should be hanged to drive the oil pump. The telescopic expansion and loading and unloading of the legs can be accomplished by manipulating the handle of the multi-way reversing valve. By operating the throttle handle beside the multi-way reversing valve, the engine speed can be controlled to adjust the operating speed of the system‘s flow changing mechanism.
