Basic introduction of LPG skid mount filling station
Time:2019-07-15
Views:2075
Standard configuration of LPG skid mount filling station: hydrocarbon pump, motor, pulley, base, alarm, frequency converter, control box, spray water pipe, float type liquid level gauge, pressure gauge, thermometer, safety valve, safety return valve , filters, check valves, ball valves, globe valves, pipe safety valves, unloading pipes, anti-vibration pipes, flanges, metal pads, 8.8 bolts, electronic filling scales, pipes, and lower shelves.
LPG skid mount refueling station is not only safe and reliable, but more importantly practical. LPG skid mount refueling station does not have enough space to arrange equipment than liquefied gas station, how to arrange various supporting equipment in a small space, and let Its safe work requires designer design.
1. There must be safe and reliable circuit systems. Pumps, electronic filling scales and compressors all need electricity to drive. The circuit must also be designed to be simple and easy to operate. When the motor is purchased, it is necessary to pay attention to the explosion-proof anti-static type. Because the liquefied gas is in the spark, the concentration is too high and it is easy to explode.
2, the complete liquid phase, gas phase, and reflux system, which requires the designer to be very familiar with the principle of the liquefied gas station. When the liquid phase, gas phase and tank truck of the armored gas station are connected, the liquefied gas in the tanker is The pressure of the compressor is poured into the storage tank. However, the volume of the outfitting refueling station is generally small. If the loading and unloading operation speed is too fast, the storage tank of the depot station cannot accommodate too much liquefied petroleum gas at a time, and there is a danger. Therefore, the designer will design a return line on the liquid phase pipeline and install a safety valve on the pipeline. Once the pressure inside the pipeline is too large, the safety valve will start to jump and leak excess liquefied gas propane, thus ensuring the overall Safety.
3. The emergency shut-off valve and concentration alarm are also installed in the place where the LPG armored gas station is connected to the pipeline. In case of leakage or sudden situation, double insurance can be provided.

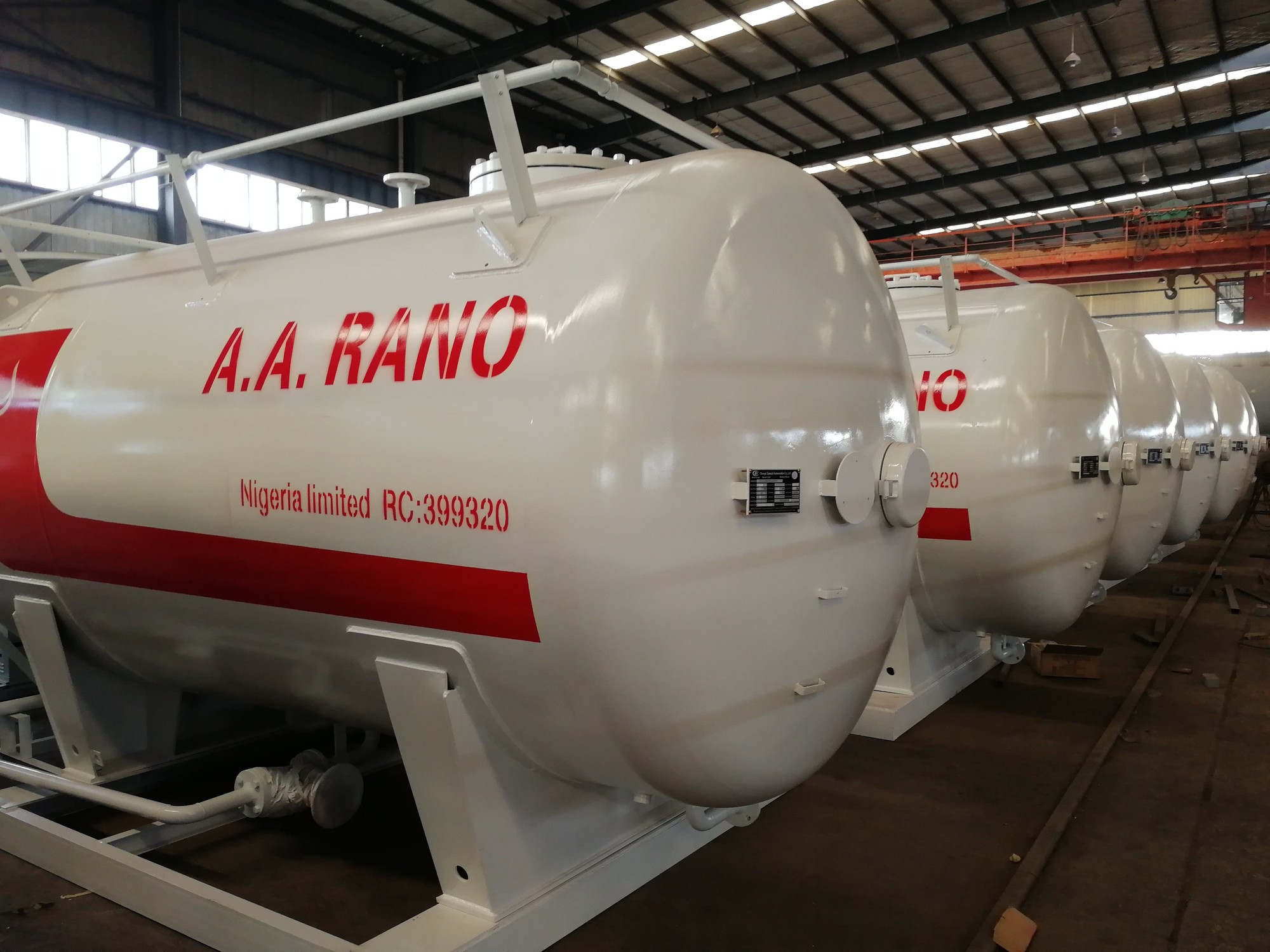

The LPG armored refueling station produced by Chengli has the following volume (cubic meters): 5 m3, 8 m3, 10 m3, 12 m3, 15 m3, 20 m3, 25 m3, 32 m3, 40 m3, 45 m3, 50 m3, 60 m3, 65 m3, 80 m3, 100 m3.
