Snow plow installed on special vehicles
Time:2019-12-17
Views:799

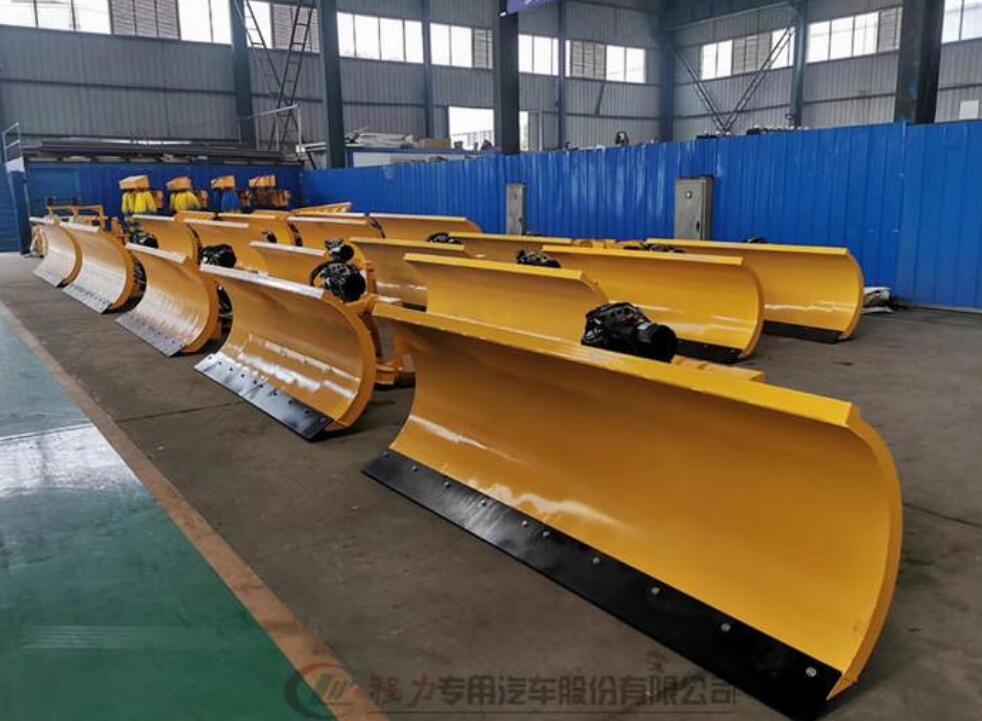

The vehicle-mounted removable 2- 3.5m snowplow roller model is classic and easy to operate. It is widely used in winter snow removal, snow melting, and ice melting operations on high-grade highways, urban or rural arterial roads, squares, wharves, and scenic roads. The snowplow can be installed on Road sweeper, garbage truck, dump truck, lorry truck, pick-up,etc.
CLW-XC-3000: 3000x1250x1100mm
CLW-XC-3000: 3000x1250x1100mm
Effective working width (mm): 2500-3000
Total weight of snow shovel (kg): 400KG
Left and right rotation angle of snowboard (°): ≥ ± 30 °
Left and right steering cylinder stroke: 160mm
Lifting cylinder stroke: 180mm
Ground clearance (mm): 300-400
Obstacle avoidance height (mm): 140
Snow removal thickness (mm): ≤200
Snow removal efficiency: ≥90%
Hydraulic system: RMH-6254-2E-2-040-H-2S DC hydraulic system unit
Working voltage (optional): 12V / 24V
Blade (thickness x width): 12x120 (high wear-resistant steel)
Shovel plate: high strength, high toughness, high quality carbon steel
Working speed (km / h): 15-30
