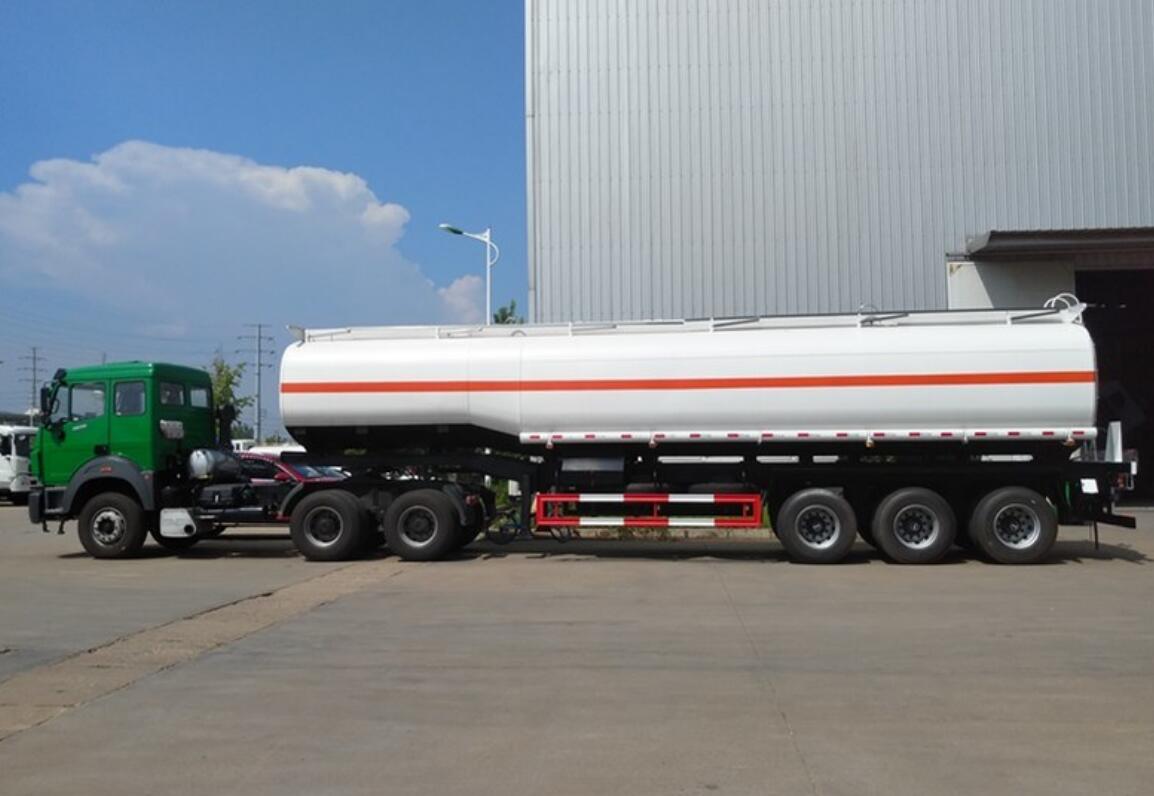

North Benz 6X4 tractor with 50,000L fuel tank trailer
NORTHBENZ tractor: Classification Item Parameter Truck with trailer Truck model CLW9409GYYA Manufacturer ChengLi Special Automobile Co.,Ltd Overall dimensions Approx.15480X2500X3780 mm Traction system 6x4 Max speed 85km/h Tank trailer Axles 3x13t Fuwa axles Tires 12 wheels, 12R22.5 tubeless tires Curb weight 8600 kg Loading capacity 50000kg Dimension 9500x2550x1200 mm Towing pin 90# JOST brand Tanker body Q345b steel; 5 -6mm thickness, head plate 6-7mm Brake 16 T brake pads with ABS Support leg 2 support legs,28t Man hole Euro standards Bottom valve 1 bottom valve Emergency cut-off valve 1 Anti - static system 1 Discharge box 1 Compartment 1 compartment with 5 baffles in the tank Other basic configurations Anti - static system; Lift handrail; Top Anti- skid plate; Hose sleeves; Tool box; Spare tire rack; Fire extinguisher; Warning board, etc. Chassis color As required Trailer color Paint as required Warranty One year warranty
Wheel base:3450+1450mm
Overall dimension: 7135x2500x3600mm
Max loading: 8000kg
Curb weight: 9685kg
Max speed: 85km/h
Engine: Weichai 380Hp, EURO3
Axles: (Mercedes Benz Technology) ;Double-shoe pneumatic brake,7.5 tons no-driving steering axle;
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13 tons double reduction driving axle，speed ratio 5.263
50,000L fuel tank trailer:
