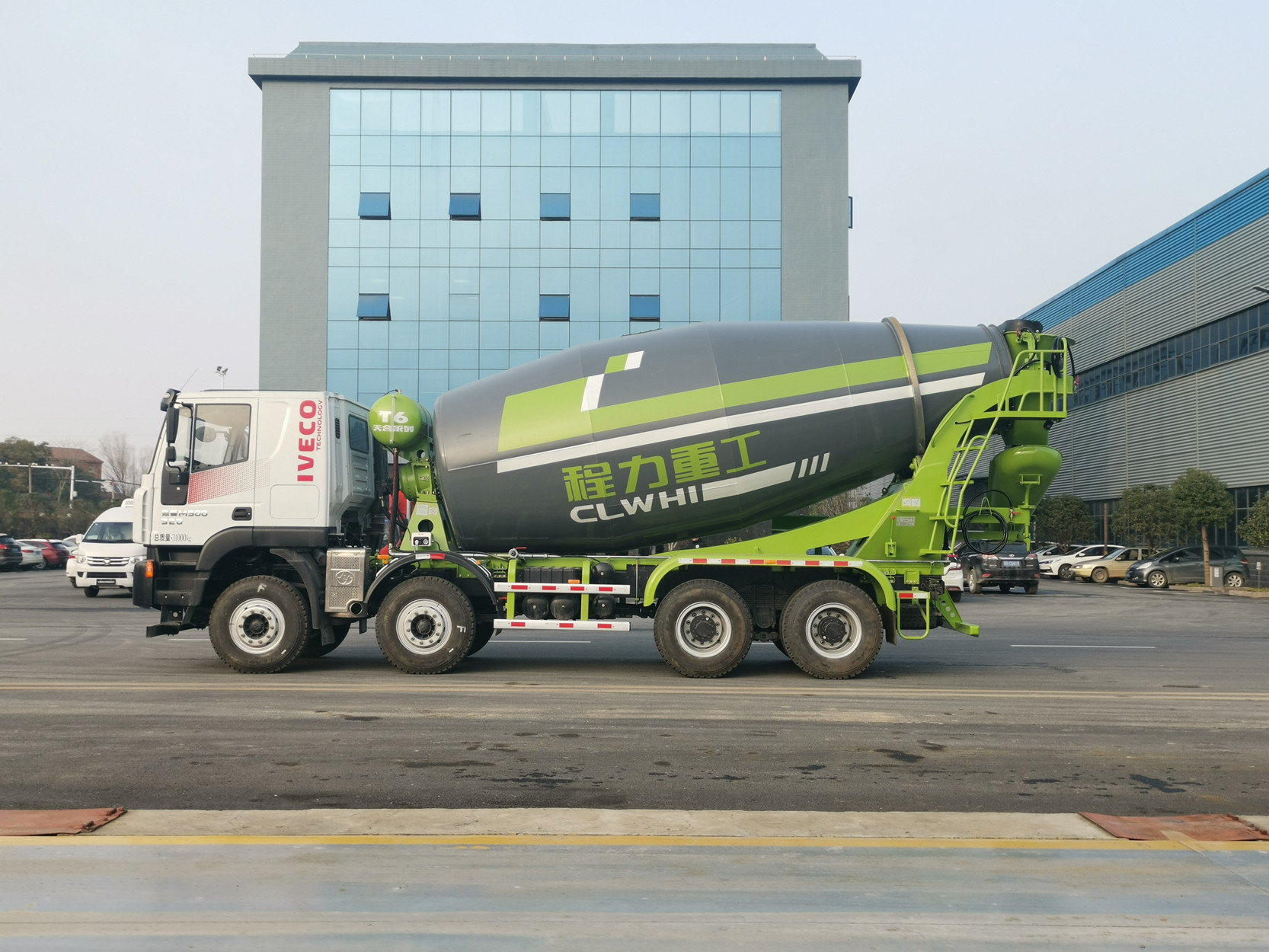

IVECO 8x4 15m3 concrete mixer truck

The head of the mixer truck is made of 8mm alloy steel wear-resistant material, and the tank body is made of 6mm alloy steel wear-resistant material. Italian PMP reducer, German Rexroth oil pump, motor, and Kaipeng radiator; The front head is made of 8mm alloy steel wear-resistant material, the cylinder is made of 4mm lightweight material, the blade is made of 5mm Q520 steel, and the air pressure water supply device is provided. Vehicle size: 10350x2550x3998mm.

No segregation and accumulation: through smooth simulation experiment, variable angle double logarithmic spiral blade is adopted, and the mixer and flow hole are matched.

Wear resistance and durability: the mixing cylinder is made of full high-strength steel, and the blades are made of HG700 high-strength wear-resistant materials, which are automatically welded.

Multi loading: the arrangement of heightened and extended blades is adopted. Under the condition of large slope, the loading capacity is increased by 1 cubic meter compared with the same volume, and the volume utilization rate is increased by 10%.

Fast discharge: the optimized spiral angle of the blade greatly increases the flow rate of concrete in the tank, and the discharge is ≥ 3 m3/min, leading the industry.
