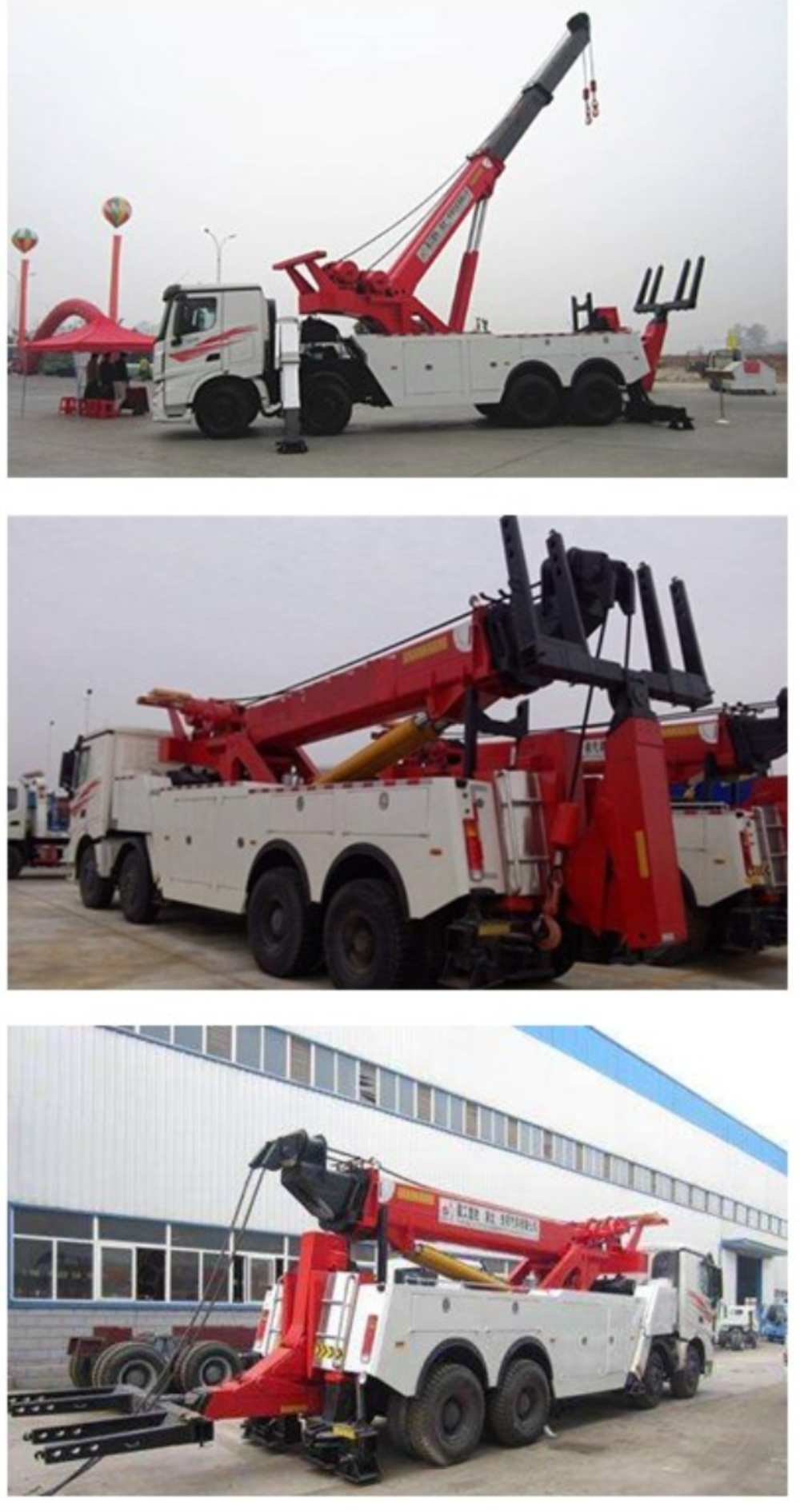

HOWO 8x4 35t Conjoined towing road - block removal truck
Time:2020-03-06
Views:902
Sinotruk Howo luxury with sleeping cabin, 10-speed transmission, original air-conditioning, thick high-strength front bumper, front fog lights, adjustable crystal headlights, wide-angle rearview mirror, front road mirror, Sinotruk 380 horsepower engine , 12.00-20 original nylon tire.
The vehicle is equipped with two 150KN winches (hydraulic winch), 55-meter steel wire rope, three-section boom, three-section boom, split carriage, double-sided linkage operation device, front bumper with counterweight, three rear work lights, one Hand washing box, 1 set of U-shaped tire holding device, 5 pairs of fork support, 1 pair of fork support, 2 chain hooks, 1 long row engineering warning light, 1 set of auxiliary lamp assembly, 1 set of auxiliary brake air pipe assembly.
Towing and dual-use, the boom can be rotated 360 degrees in all directions, and the United States uses the advanced double hinge point mechanism, which can fold the boom when the arm is under load. Quadrilateral structure.
Supporting system: maximum towing weight of 38 tons, in situ lifting weight of 16 tons, full extension of maximum lifting weight of 9.5 tons, rated lifting weight: 12.5 tons
Lifting system: the maximum lifting mass is 30 tons, the maximum lifting mass is 3.5T, and the maximum lifting height is 12000mm.
Winches: Quantity: 2 pieces, Rated Traction: 150KN, Wire Rope Diameter: φ22mm, Wire Rope Length: 55x2mm, Minimum Wire Rope Speed: 5m / min
Outrigger: Front leg lateral span: 6100mm, rear leg lateral span: 4000mm
The vehicle is equipped with two 150KN winches (hydraulic winch), 55-meter steel wire rope, three-section boom, three-section boom, split carriage, double-sided linkage operation device, front bumper with counterweight, three rear work lights, one Hand washing box, 1 set of U-shaped tire holding device, 5 pairs of fork support, 1 pair of fork support, 2 chain hooks, 1 long row engineering warning light, 1 set of auxiliary lamp assembly, 1 set of auxiliary brake air pipe assembly.
Towing and dual-use, the boom can be rotated 360 degrees in all directions, and the United States uses the advanced double hinge point mechanism, which can fold the boom when the arm is under load. Quadrilateral structure.
Supporting system: maximum towing weight of 38 tons, in situ lifting weight of 16 tons, full extension of maximum lifting weight of 9.5 tons, rated lifting weight: 12.5 tons
Lifting system: the maximum lifting mass is 30 tons, the maximum lifting mass is 3.5T, and the maximum lifting height is 12000mm.
Winches: Quantity: 2 pieces, Rated Traction: 150KN, Wire Rope Diameter: φ22mm, Wire Rope Length: 55x2mm, Minimum Wire Rope Speed: 5m / min
Outrigger: Front leg lateral span: 6100mm, rear leg lateral span: 4000mm
