Dongfeng 4x2 heavy duty road - block removal truck
Time:2019-09-11
Views:1183
One-to-one wrecker can be divided into: towed joint wrecker, towed separation (rotary crane) wrecker, pickup wrecker, heavy wrecker, medium wrecker, light wrecker, etc. . Chengli Group produces and sells light of 2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 16 tons, 20 tons, 30 tons, 40 tons, 50 tons and 60 tons. One-to-one wrecker models at the medium and heavy levels.
Dongfeng Tianjin is one of the wreckers, also known as Dongfeng Tianjin towed mortise wrecker, large wrecker, heavy-duty road wrecker, mainly used for highways and other road accidents or fault-like heavy and large vehicles. Rescue, cleaning, lifting, towing and other rescue work to ensure smooth roads and towing the faulty vehicles from the scene.
Dongfeng Tianjin is one of the wreckers, also known as Dongfeng Tianjin towed mortise wrecker, large wrecker, heavy-duty road wrecker, mainly used for highways and other road accidents or fault-like heavy and large vehicles. Rescue, cleaning, lifting, towing and other rescue work to ensure smooth roads and towing the faulty vehicles from the scene.

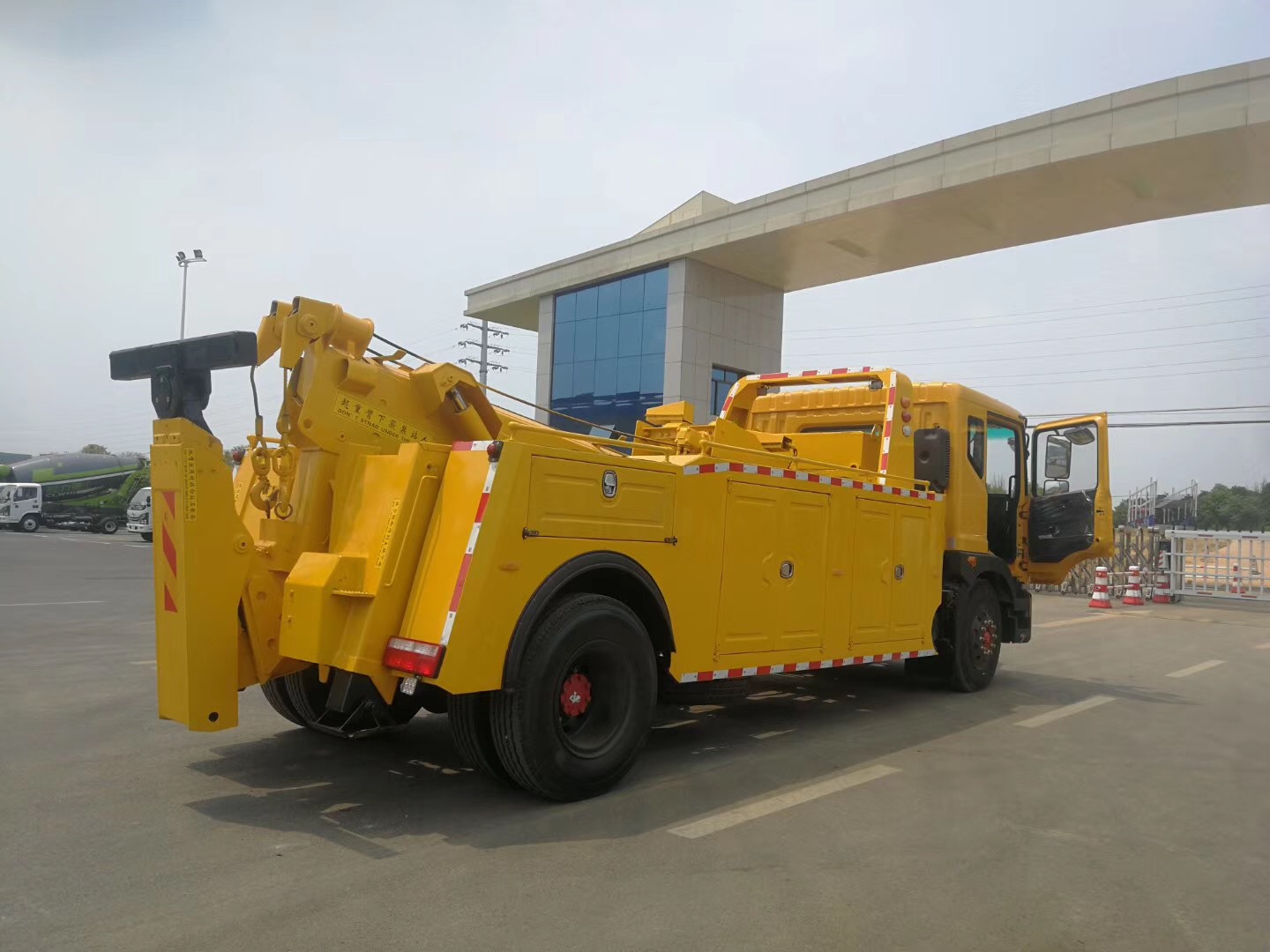

Product Name: Dongfeng Tianjing one for one wrecker
Dimensions (mm): 8650x2500x3000
Vehicle model: CLW5161TQZD5
Total quality : (kg) 16000
Curb weight: (kg) 10805
Maximum lift (kg): 12000
Maximum traction (kg): 50000
Maximum lifting (kg): 16000
1. Boom: fixed boom (only lift, not rotate). The two-section hexagonal boom has a total extension of 6 meters, an effective length (retractable part) of 2.9 meters, a maximum lifting of 5.7 meters, a maximum lifting of 16 tons, and a total lifting of 8 tons.
2. Hoisting: 2 sets of 8 tons of hydraulic winch, 40 meters of steel wire rope, 2 sets of 20 tons hooks.
3. Support arm: 3 sections can be telescopic, lift the support arm, lift 12 tons in place, extend 3 meters (effective length 2.5 meters), can lift 5 tons; can hold 50 tons.
4. Others: Double-sided linkage operation device, detachable operation box; engineering alarm light, shouting microphone, rear work light, hand washing box, U-shaped tire device, fork, fork, chain hook, auxiliary lamp assembly , auxiliary brake air pipe assembly. Spare tires, as well as a full range of rescue aids.
5. Remarks: The arm and the boom are made of high-strength steel, bent or stamped. After pickling, phosphating and cathodic electrophoresis, the steel parts will not rust for a long time. The hydraulic oil circuit system is acid-washed, passivated, electrophoresed, and oil-repellent and rust-proofed to ensure the stability of the entire hydraulic system and the performance of the whole vehicle. The whole vehicle uses imported hydraulic valves.
Dimensions (mm): 8650x2500x3000
Vehicle model: CLW5161TQZD5
Total quality : (kg) 16000
Curb weight: (kg) 10805
Maximum lift (kg): 12000
Maximum traction (kg): 50000
Maximum lifting (kg): 16000
1. Boom: fixed boom (only lift, not rotate). The two-section hexagonal boom has a total extension of 6 meters, an effective length (retractable part) of 2.9 meters, a maximum lifting of 5.7 meters, a maximum lifting of 16 tons, and a total lifting of 8 tons.
2. Hoisting: 2 sets of 8 tons of hydraulic winch, 40 meters of steel wire rope, 2 sets of 20 tons hooks.
3. Support arm: 3 sections can be telescopic, lift the support arm, lift 12 tons in place, extend 3 meters (effective length 2.5 meters), can lift 5 tons; can hold 50 tons.
4. Others: Double-sided linkage operation device, detachable operation box; engineering alarm light, shouting microphone, rear work light, hand washing box, U-shaped tire device, fork, fork, chain hook, auxiliary lamp assembly , auxiliary brake air pipe assembly. Spare tires, as well as a full range of rescue aids.
5. Remarks: The arm and the boom are made of high-strength steel, bent or stamped. After pickling, phosphating and cathodic electrophoresis, the steel parts will not rust for a long time. The hydraulic oil circuit system is acid-washed, passivated, electrophoresed, and oil-repellent and rust-proofed to ensure the stability of the entire hydraulic system and the performance of the whole vehicle. The whole vehicle uses imported hydraulic valves.
