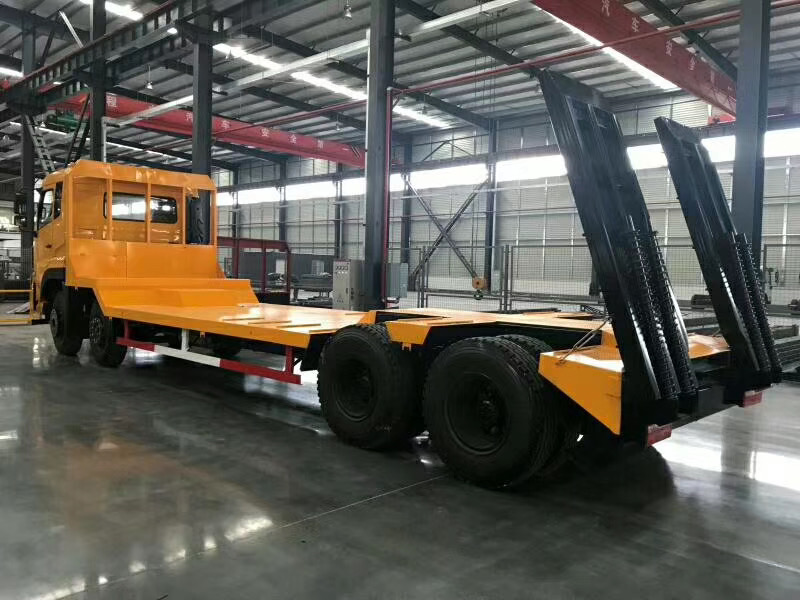

Chengli 8x4 30t heavy duty flatbed truck

The standard top coat of Dongfeng Tianlong front four rear eight flatbed trucks uses 120 * 120mm beams, 6mm thick square steel, the whole through-type design to ensure the bearing performance, the cargo box plate 8mm thick pattern plate; heavy load type upper beams use 145 * 120mm beams, 8mm thick square steel, whole through design, better bearing performance, 10mm thick pattern plate of cargo box flat.

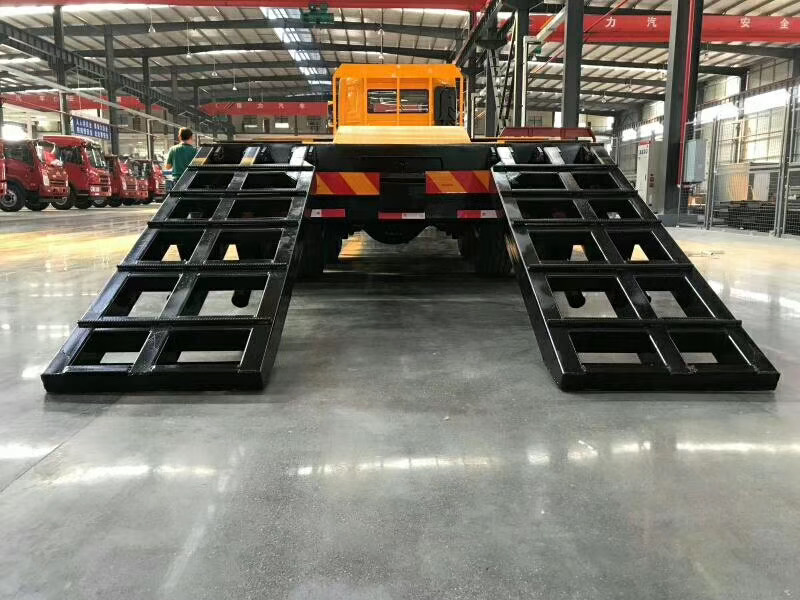

Dongfeng Tianlong front four rear eight flat car adopts reinforced design climbing ladder, adopts three bars and double spring reinforcement treatment, with rear legs, flat plate with diagonal support, flat plate can be extended and contracted, extend 3 meters, retract 2.55 meters, the length of the cargo box flat plate 8.2 meters, ideal for transporting 30-40 tons of large excavators, large construction machinery and other flatbed trucks.
