Changan 6 wheels small pavement sweeper vehicle
Time:2019-10-21
Views:3948

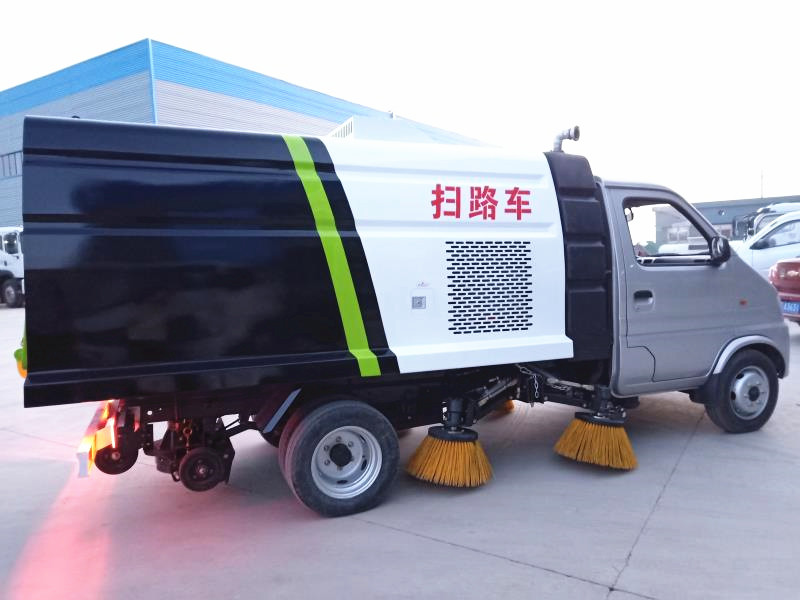

Chang‘an Road Sweeper is a small road sweeper that is light, easy to operate, and more convenient for urban use. It is used for street, community, park and other ground cleaning. The working width is up to 2 meters and the suction particle size is φ120mm. The maximum working capacity is 13000m2/h-25000m2/h.
Changan sweeper adopts Changan 6-wheel chassis, equipped with auxiliary engine, fan, clean water tank, garbage bin, left and right vertical sweep, rear suction cup, sweeping dust reduction system, hydraulic system, special equipment electronic control system and sub-frame modification. Made (can be added before the flush and sprinkle).
(1) Changan (wheelbase 2990) type national five-two type chassis, front and rear bridge with air shock absorbers.
Equipped with an 80 hp petrol engine with low fuel consumption.
Equipped with an 80 hp petrol engine with low fuel consumption.
(2) The auxiliary engine adopts the Yuchai 50-horsepower engine with strong performance.
(3) Automatic clutch drive fan to reduce the impact on the engine when the fan starts and stops. The clutch has the advantages of high wear resistance, long service life, low noise, low fuel consumption and cost saving during use.
(4), using Luoyang listed company, North Glass Taiwan letter high-power wear-resistant maintenance-free centrifugal fan, no noise, high efficiency, large air volume, long service life.
(5), the water tank fully utilizes the car space, the volume is 0.5m3, the inside of the water tank is anti-corrosion, anti-rust and anti-virus treatment, which makes the pump run safer and ensures the cleaning efficiency.
(6) The garbage bin adopts double-layer inner tank stainless steel structure with a volume of 1.5-2.5m3. The filter plate is installed inside, which can effectively prevent the light objects such as leaves and plastic bags from blocking the discharge of air outlets and dust. The built-in spray dusting device greatly utilizes the space where the garbage can be loaded with garbage. The car body is tipped and unloaded.
(7), the left and right vertical sweep is a single sweeping disc, and the front sweeping disc has an automatic avoiding function, which reduces the number of sweeping brushes and the consumption of the sweeping brush, and can reduce the use cost. A water spray device is installed on the brush for dust reduction. The left and right vertical sweeping control can realize different working modes such as back sweep and full sweep.
(8) The suction mouth width of the nozzle reaches 1100mm, and the total width of the large operation is greater than 2.6m. Three height-adjustable nozzle wheels can easily adjust and ensure a reasonable gap between the nozzle and the road surface, so as to achieve better suction effect and higher efficiency of suction.
(9),The cab manual button hydraulic system drives the left and right vertical sweep lift, the left and right sweeping disc rotation, the suction nozzle lifting, the garbage bin rear door opening and closing, the dumping bin tilting reset and other mechanical actions.
(10) The sweeping cycloid motor adopts domestic well-known brands, with long service life, stable and reliable, and low failure rate.
(11) The hydraulic pipeline adopts the German standard technical sealing structure, which has good anti-vibration performance and high sealing reliability, and can achieve a leak-free sealing effect.
(12), Using high-quality hydraulic Huade solenoid valve group, two-way operation button, the key electronic control components adopt German Siemens electrical switch, high reliability and long service life.
(13) The hydraulic components adopt integrated superposition design, and the electro-hydraulic control of the cab is centralized and easy to operate.
(14) Install the manual pump emergency system, and lift the dustbin in the state where the auxiliary engine is stopped, which is convenient for maintenance.
(15), LED arrow light warning light is used at the rear to ensure safe driving operation.
(16) Non-stainless steel parts are treated by electrophoresis and anti-rust treatment, which is durable.
(17) The sub-bearing load-bearing beam is welded with square steel with a section length of 120mm, a width of 60mm and a thickness of 8mm, which ensures the safety of the whole vehicle and makes the vehicle safer.
(18), Appearance design computer design, high side skirt, curved surface transition, overall coordination and symmetry. Achieve low fuel consumption, low noise, streamlined design.
