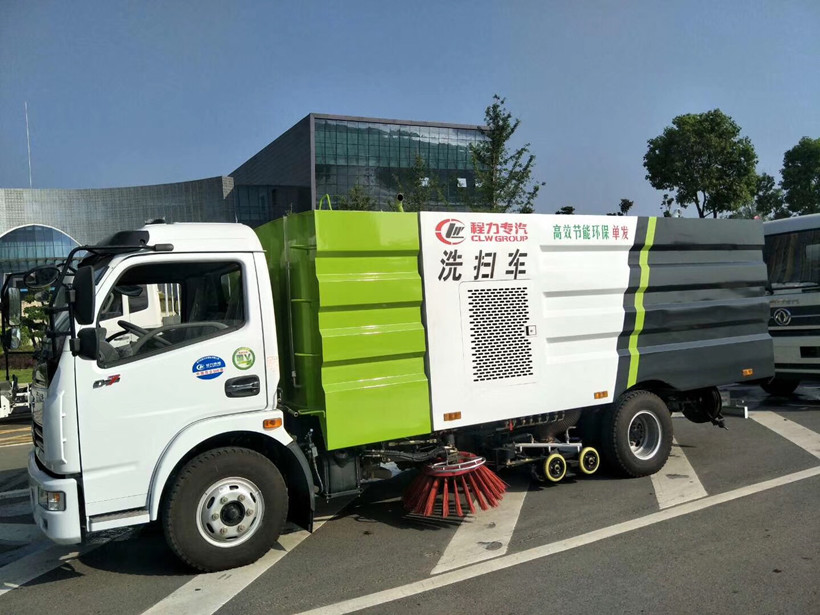

4-5m3 4x2 road washing and sweeping truck
Time:2019-10-21
Views:1143
1. Dongfeng washing and sweeping vehicle adopts washing, sweeping, sucking and mixing to collect garbage, wet dust removal, electro-hydraulic PLC one-button control, hydraulic dumping and unloading operation mode to clean the road surface.
2. The auxiliary engine is specially used to drive the fan and hydraulic system to ensure the continuous operation during the driving process and ensure the continuity of the cleaning process.
3. Adopting the structural layout of “medium two-disc + spray dust + medium-width wide-mouth nozzle (built-in high-pressure spray bar and high-pressure spray bars on both sides)”, it has better cleaning effect on muddy road surface, sand during cleaning process. The stone is not splashing dust, this layout is convenient for the adjustment and maintenance of the cleaning device and the suction cup, and the vehicle passing performance is good when the operation is changed.
4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch to ensure the automatic separation of the auxiliary engine from the start of the no-load and the shutdown of the fan, reducing the impact on the auxiliary engine and improving the reliability and use of the auxiliary engine. life.
5. The sweeping disc has automatic obstacle avoidance protection function and automatic reset function. It automatically retracts when it encounters obstacles and automatically returns to the obstacle.
6. The rotating speed of the sweeping wheel can be adjusted according to various cleaning conditions, which can ensure good cleaning effect under various pollution conditions.
7. Adopt advanced and efficient dedicated fan and fully floating nozzle that can be leveled automatically with the road surface. It has good cleaning effect and long service life.
2. The auxiliary engine is specially used to drive the fan and hydraulic system to ensure the continuous operation during the driving process and ensure the continuity of the cleaning process.
3. Adopting the structural layout of “medium two-disc + spray dust + medium-width wide-mouth nozzle (built-in high-pressure spray bar and high-pressure spray bars on both sides)”, it has better cleaning effect on muddy road surface, sand during cleaning process. The stone is not splashing dust, this layout is convenient for the adjustment and maintenance of the cleaning device and the suction cup, and the vehicle passing performance is good when the operation is changed.
4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch to ensure the automatic separation of the auxiliary engine from the start of the no-load and the shutdown of the fan, reducing the impact on the auxiliary engine and improving the reliability and use of the auxiliary engine. life.
5. The sweeping disc has automatic obstacle avoidance protection function and automatic reset function. It automatically retracts when it encounters obstacles and automatically returns to the obstacle.
6. The rotating speed of the sweeping wheel can be adjusted according to various cleaning conditions, which can ensure good cleaning effect under various pollution conditions.
7. Adopt advanced and efficient dedicated fan and fully floating nozzle that can be leveled automatically with the road surface. It has good cleaning effect and long service life.
|
Specifications |
Garbage tank( m3 ) |
4（Stainless steel） |
|
|
Water tank( m3 ) |
5（Stainless steel） |
||
|
Sweeping width(mm) |
2800-3200 |
||
|
Sweeping speed(km/h) |
3-15 |
||
|
Cleaning working speed(km/h) |
15-20 |
||
|
Max sweeping (m2/h) |
48000 |
||
|
Suction |
Density(g/cm3) |
2.0 |
|
|
Mass(kg) |
1.5 |
||
|
Suction granularity (mm) |
≥100 |
||
|
Dump angle |
≥45° |
||
|
Cleaning efficiency |
≥96% |
||
|
working-noise (db) |
< 88 |
||
