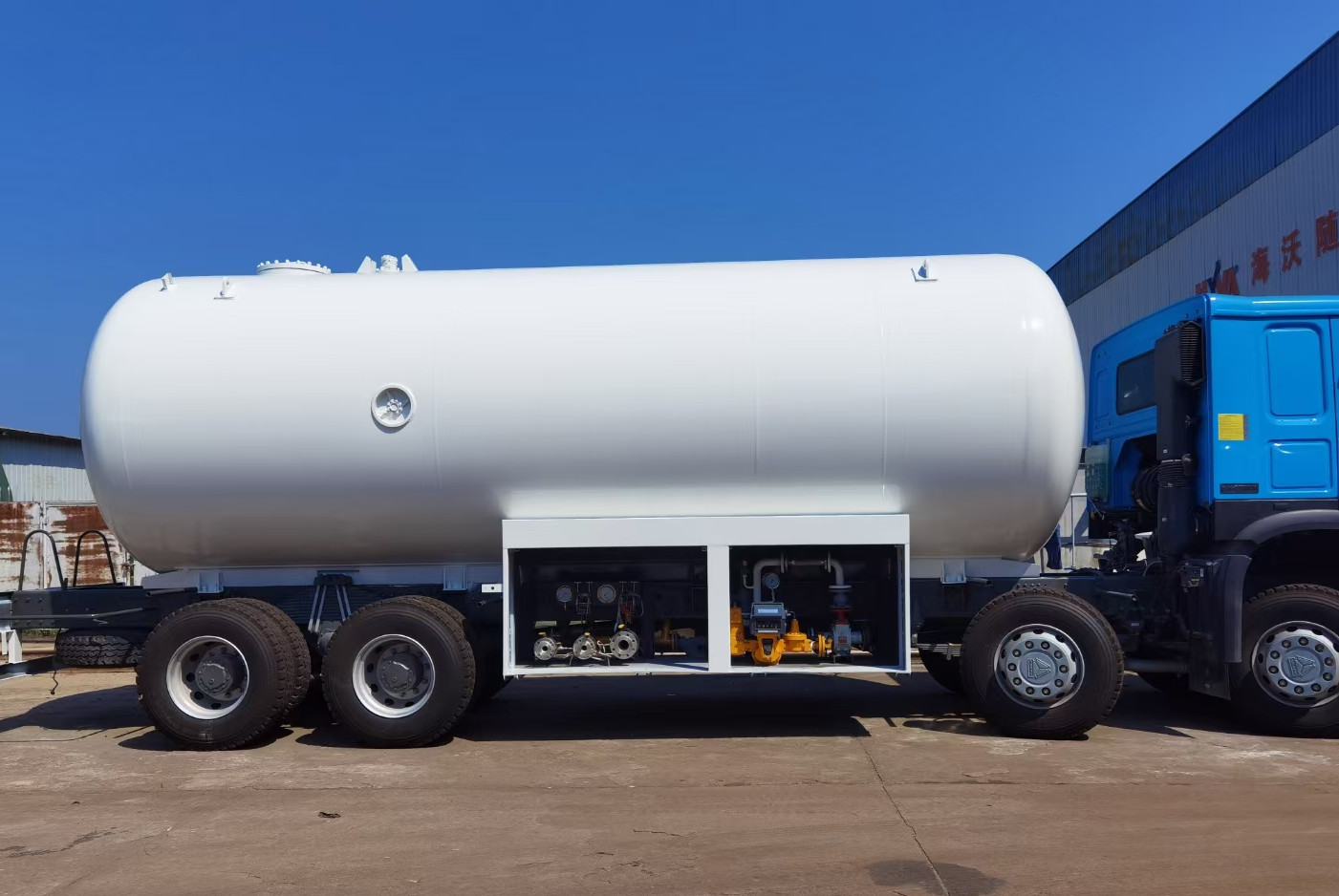

12 wheels 18T LPG bobtail tank truck
Time:2022-09-05
Views:120
The LPG bobtail tank truck is suitable for transporting liquefied petroleum gas (propane); The filling capacity per unit volume is 0.42 tons / cubic meter; Class item No.: 2.1; Effective volume of tank: 37.2 m3, overall dimension (length) of tank × Diameter) (mm): 8186 × 2499; The length of the straight section of the tank body is 6830 (mm). Protective material: Q235 carbon steel, connection method: left and right sides and rear protection are welded, and rear protection section ruler (mm): 100 × 50. Height of rear protection from the ground (mm): 430.
Tank material Q370R (normalized), head form and thickness: Double ellipse δ 12. Filling medium: liquefied petroleum gas (LPG), filling mass per unit volume of 0.42t/m3, design pressure of 1.61mpa, inner diameter * wall thickness * length (mm): 2475 * 12 * 8186, double outlet, double loading and unloading, double valve box, double toolbox, safety valve, 50 liquid-phase interfaces, 25 gas-phase interfaces, vent valve, copper grounding wire (anti-static).
Tank material Q370R (normalized), head form and thickness: Double ellipse δ 12. Filling medium: liquefied petroleum gas (LPG), filling mass per unit volume of 0.42t/m3, design pressure of 1.61mpa, inner diameter * wall thickness * length (mm): 2475 * 12 * 8186, double outlet, double loading and unloading, double valve box, double toolbox, safety valve, 50 liquid-phase interfaces, 25 gas-phase interfaces, vent valve, copper grounding wire (anti-static).
.png)
.png)
